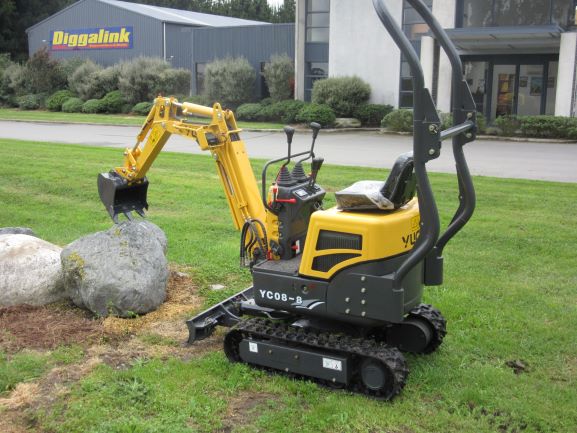

YC08-8

SKU: 12345 Category:

  • Powered by Yanmar
  • KYB / Kawasaki Hydraulics
  • Extra Strong Track Frame
  • Computer Free
  • Aux Hydraulics

Max Length 2800 mm
Machine Height 2300 mm
Overall Width 764 mm
Width of Platform 730 mm
Width of Track 180 mm
Length of Track 1242 mm
Platform Tail Turning 580 mm
Height Undercarriage to Ground 164 mm
Height Platform to Ground 419 mm
Engine Yanmar 2TNV70 Diesel
Engine Power 7.5 kw @ 2400 rpm
Machine Weight 1030 kg
Std Bucket Capacity 0.02 cub m
Std Bucket Width 400 mm
Operating Hyd Pressure M 16 MPa
Max Digging Force 9.2 kN
Gradeability 58 %
Pressure to Ground 21 Kpa
Walking Speed 1.6 – 2.6 km/hr
Max Hauling Force 7.6 – 7.8 kN
Swing Speed 9 rpm
Max Digging Height 2743 mm
Max Digging Depth 1415 mm
Min Platform Tail Turning Radius 1249 mm
Max Digging Radius 2831 mm
Max Dumping Height 1951 mm
Max Digging Reach Ground Level 2727 mm
