| Max Length | 3670 mm |
| Machine Height | 2245/2310 mm |
| Overall Width | 1030 mm |
| Width of Platform | 1010 mm |
| Width of Track | 230 mm |
| Length of Track | 1419 mm |
| Platform Tail Turning | 1172 mm |
| Height Undercarriage to Ground | 213 mm |
| Height Platform to Ground | 452 mm |

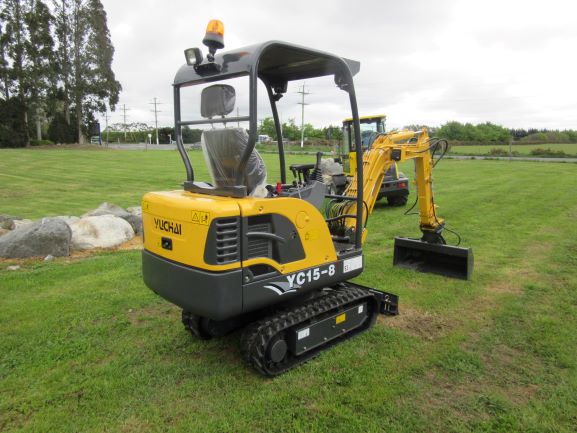

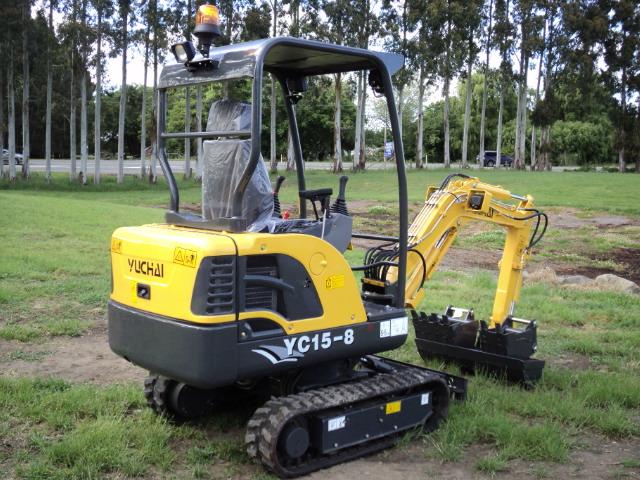

YC15-8
- 14.7 kW rated power
- Attachments: Digging, trench, wide
- Expanding tracks
- Computer free
- Aux hydraulics
- Options include: Galvanised 2 axle braked trailer
| Engine | Perkins 403C-11 Diesel |
| Engine Power | 14.7kw @ 2200 rpm |
| Machine Weight | 1625 kg |
| Std Bucket Capacity | 0.04 cub m |
| Std Bucket Width | 400 mm |
| Operating Hyd Pressure M | 16 MPa |
| Max Digging Force | 11 kN |
| Gradeability | 58 % |
| Pressure to Ground | 27 Kpa |
| Walking Speed | 2 km/hr |
| Max Hauling Force | 8.8 kN |
| Swing Speed | 10 – 12 rpm |
| Max Digging Height | 2910 mm |
| Max Digging Depth | 1800 mm |
| Min Platform Tail Turning Radius | 1694 mm |
| Max Digging Radius | 3520 mm |
| Max Dumping Height | 2050 mm |
| Max Digging Reach Ground Level | 3431 mm |
