| Max Length | 5656 mm |
| Machine Height | 2585 mm |
| Overall Width | 1920 mm |
| Width of Track Platform | 1960 mm |
| Width of Track | 400 mm |
| Length of Track | 2494 mm |
| Platform Tail Turning Radius | 1520 mm |
| Height Undercarriage to Ground | 316 mm |
| Height Platform to Ground | 670 mm |

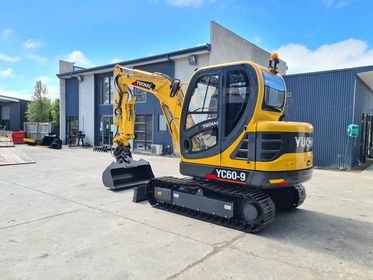

Yuchai YC60-9
- Powered by Kubota V2403
- KYB / Kawasaki Hydraulics
- GP Bucket
- Extra Strong Track Frame
- Computer Free
- Aux Hydraulics
| Engine Power | 30.7 kw/2200rpm |
| Machine Weight | 5700kg |
| Standard Bucket Capacity | 0.21m3 |
| Outer Width of Bucket | 742mm |
| Operation hydraulic pressure | 24.5MPa |
| Maximum Digging Force | 36.6kN |
| Gradeability | 35 deg |
| Travelling Speed | 2.2-3.6km/h |
| Maximum Hauling Force | 46.5kN |
| Swing Speed of Platform | 11rpm |
| Maximum Digging Height | 5740mm |
| Maximum Digging Depth | 3720mm |
| Minimum Platform Tail Turning Radius | 1520mm |
| Maximum Digging Radius | 6065mm |
| Maximum Dumping Height | 4040mm |
| Maximum Digging Radius at Ground Level | 5945mm |
