| Max Length | 5250 mm |
| Machine Height | 2470 mm |
| Overall Width | 1518 mm |
| Width of Platform | 1450 mm |
| Width of Track | 300 mm |
| Length of Track | 1943.5 mm |
| Platform Tail Turning | 1343.5 mm |
| Height Undercarriage to Ground | 302 mm |
| Height Platform to Ground | 538 mm |

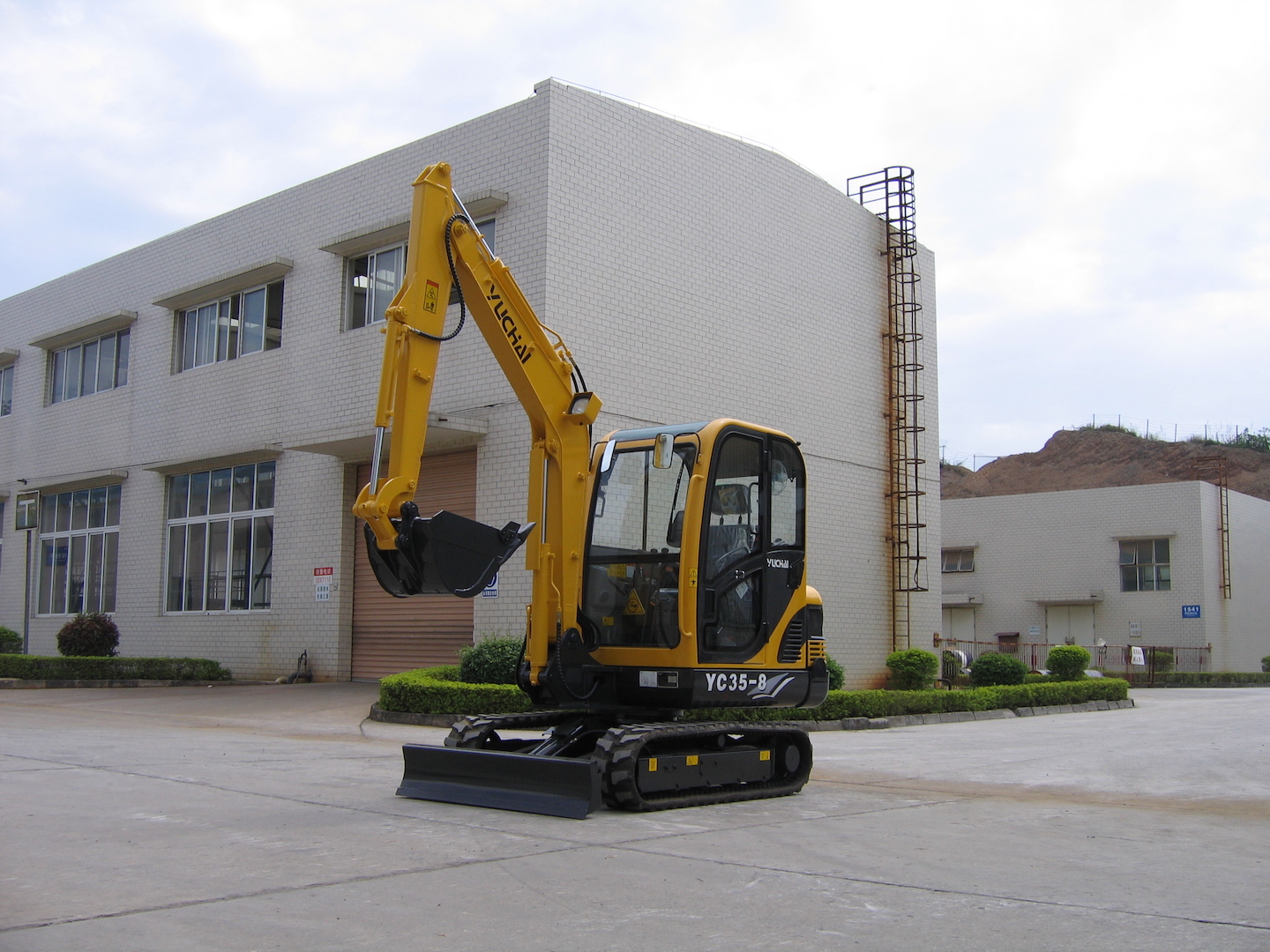

YC35-8
- Powered by Kubota
- KYB / Kawasaki Hydraulics
- Extra Strong Track Frame
- Computer Free
- Aux Hydraulics
| Engine | Kubota V2403 |
| Engine Power | 13.2kw @ 2200 rpm |
| Machine Weight | 3740 kg |
| Std Bucket Capacity | 0.12 cub m |
| Std Bucket Width | 630 mm |
| Operating Hyd Pressure M | 21 MPa |
| Max Digging Force | 22.19 kN |
| Gradeability | 58 % |
| Pressure to Ground | 21Kpa |
| Walking Speed | 3.4 – 4.8 km/hr |
| Max Hauling Force | 29 kN |
| Swing Speed | 11-13 rpm |
| Max Digging Height | 5200 mm |
| Max Digging Depth | 3535 mm |
| Min Platform Tail Turning Radius | 1992 mm |
| Max Digging Radius | 5590 mm |
| Max Dumping Height | 3680 mm |
| Max Digging Reach Ground Level | 5486 mm |
