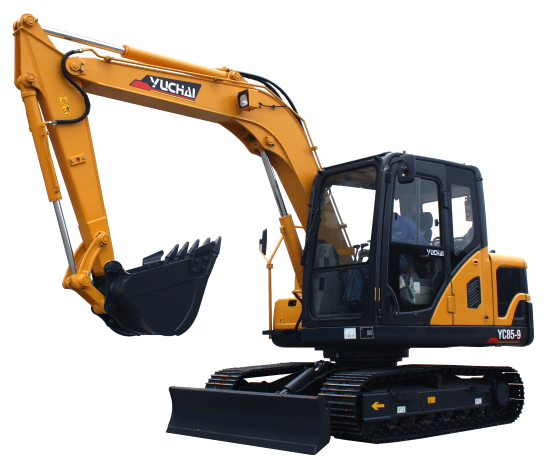

YC85-9

Category:

  • Powered by Yanmar
  • KYB / Kawasaki Hydraulics
  • Extra Strong Track Frame
  • Computer Free
  • Aux Hydraulics
  • Overall Trans Length: 6425mm
  • Overall Width:  2260mm
  • Overall Height:  2705mm

 Max Trans Length 6425 mm
 Machine Height 2705 mm
 Overall Width 2260 mm
 Width of Undercarriage 2150 mm
 Width of Track 450 mm
 Length of Track 2783 mm
 Platform Tail Turning Radius 1881 mm
 Height Undercarriage to Ground 380 mm
 Height Platform to Ground 790 mm
 Engine Yanmar 4TNV98T Diesel
 Engine Power 54.3 kw @ 2200 rpm
 Machine Weight 8500 kg
 Std Bucket Capacity 0.32 cub m
 Std  Bucket Width 875 mm
 Max Hauling Force 55 kN
 Max Digging Force 41 kN
 Gradeability 58 %
 Pressure to Ground 41.6 Kpa
 Walking Speed 4.1 – 5.8 km/hr
 Swing Speed 10 – 13 rpm
 Max Digging Height 7140 mm
 Max Digging Depth 4160 mm
 Min Platform Tail Turning Radius 2140 mm
 Max Digging Radius 6630 mm
 Max Dumping Height 5100 mm
 Max Digging Radius Ground Level 6491 mm
