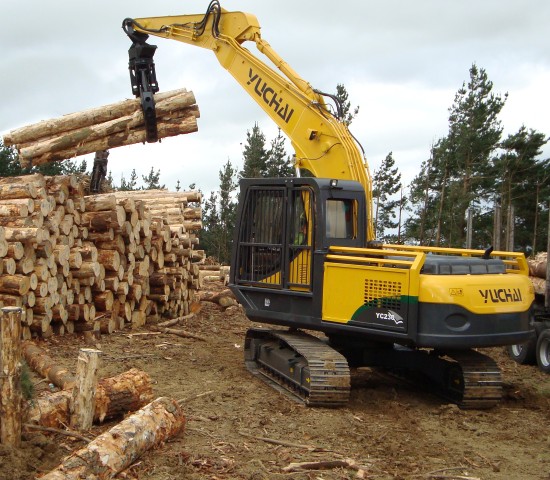

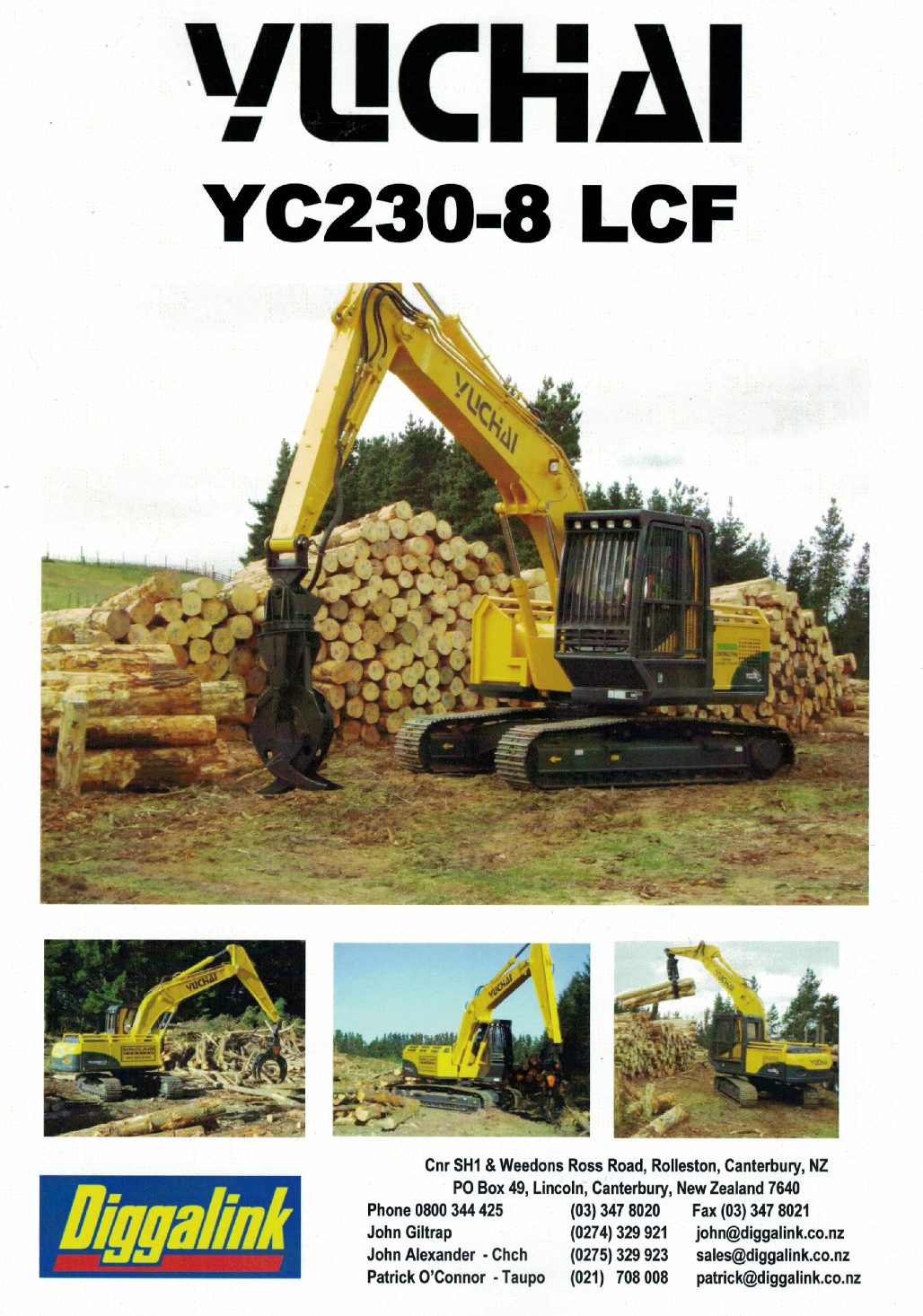

YC230LC-8F

  • Powered by Cummins
  • KYB / Kawasaki Hydraulics
  • Extra Strong Track Frame
  • Aux Hydraulics

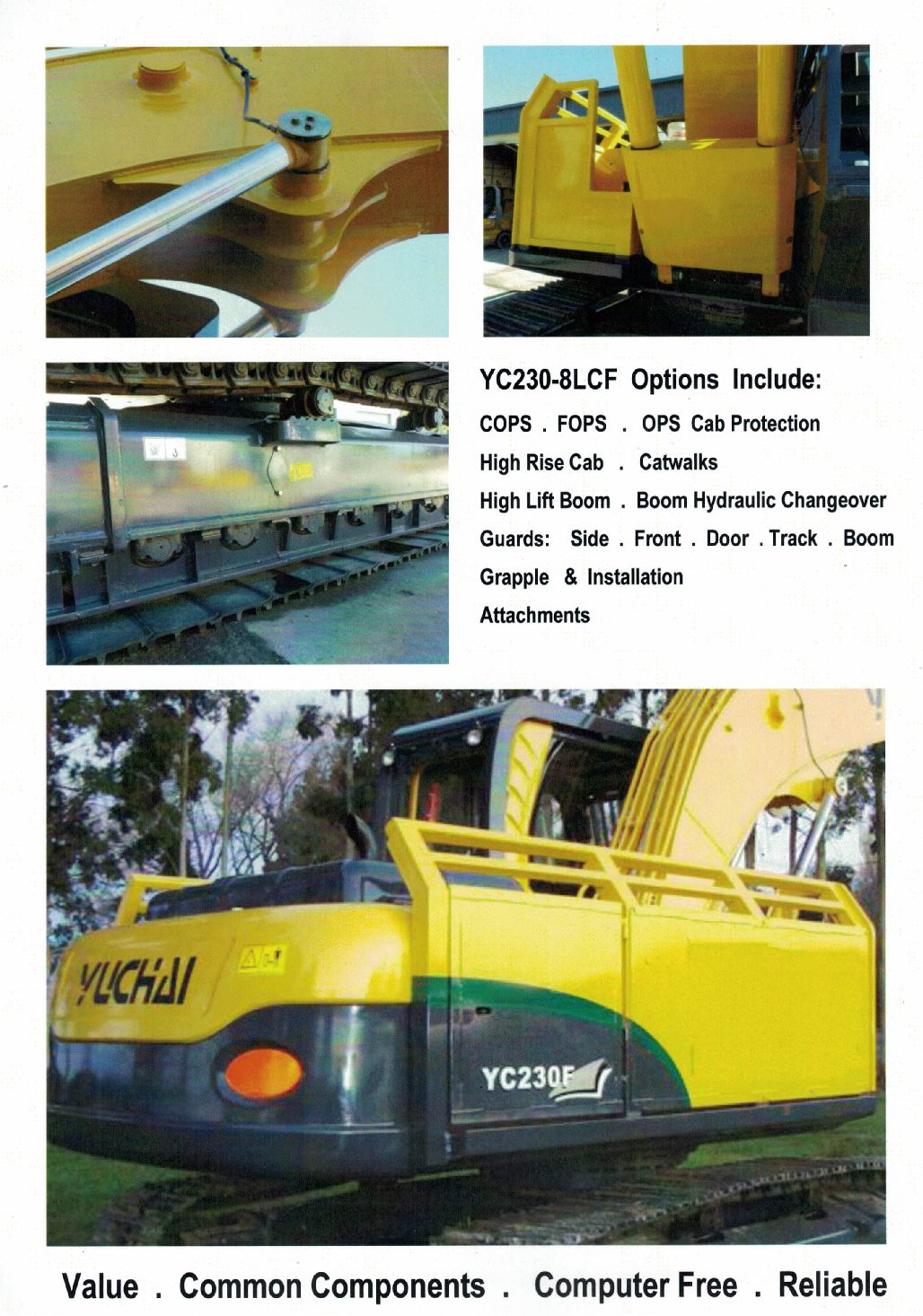

  • Forestry Guarding Package Can Include:
    – Front/Rear/Left/Right Guarding Options
    – Track Guards
    – Door Guards
    – Catwalk

 Max Length 9565 mm
 Machine Height 3000 mm
 Overall Width 2990 mm
 Width of Platform 2700 mm
 Width of Track 600 mm
 Length of Track 4442 mm
 Platform Tail Turning 2777 mm
 Height Undercarriage to Ground 510.5 mm
 Height Platform to Ground 1107 mm
 Engine Cummins 6B5.9 Diesel
 Engine Power 112 kw @ 2200 rpm
 Machine Weight 22360 kg
 Std Bucket Capacity 1.05 cub m
 Std  Bucket Width 1385 mm
 Operating Hyd Pressure M 31.4 MPa
 Max Digging Force 140 kN
 Gradeability 70 %
 Pressure to Ground 46 Kpa
 Walking Speed 4.7 – 5.5 km/hr
 Max Hauling Force 200 kN
 Swing Speed 11 – 13.5 rpm
Max Digging Height 9680 mm
 Max Digging Depth 6645 mm
 Min Platform Tail Turning Radius 3430 mm
 Max Digging Radius 9935 mm
 Max Dumping Height 6770 mm
 Max Digging Reach Ground Level 9700 mm
