| Max Length | 10790 mm |
| Machine Height | 3160 mm ** |
| Width of Platform | 3260 mm |
| Width of Track | 600 mm |
| Length of Track | 4961 mm |

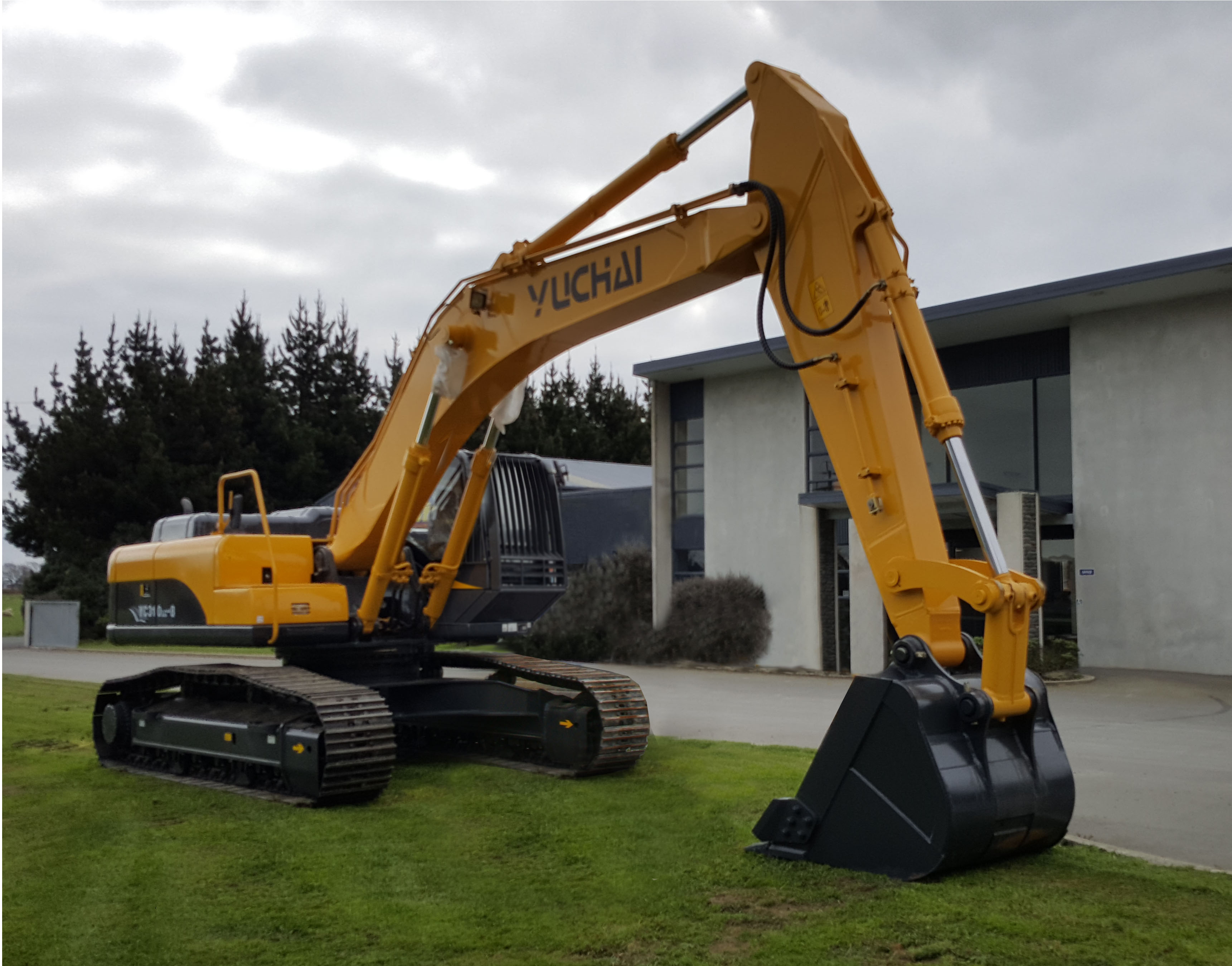

Yuchai YC310LC-8
- Powered by Cummins
- KYB / Kawasaki Hydraulics
- Extra Strong Track Frame
- Auxiliary Hydraulics
- Forestry Guarding Package Options Can Include:
– High / Wide / Riser Options
– Side / Rear / Engine Guards & Catwalks
– Rops / Door Guards
– Belly / Undercarriage / Track Guards
– Catwalks - Multiple Attachment Options Available
– Grab, Grapple, Thumb, Root Rakes, Rippers, Buckets etc
| Engine | Cummins 6C8.3 Diesel |
| Engine Power | 198 kw @ 2000 rpm |
| Machine Weight | 31640 kg |
| Max Digging Force | 229 kN |
| Walking Speed | 5.2 km/hr |
| Swing Speed | 10.7 rpm |
| Fuel Tank Capacity | 620L |
| Max Digging Height | 10190 mm ** |
| Max Digging Depth | 7410 mm ** |
| Min Platform Tail Turning Radius | 3825 mm ** |
| Max Dumping Height | 7165 mm ** |
| Max Digging Reach Ground Level | 10420 mm ** |
| Max Digging Force | 175 kN |
