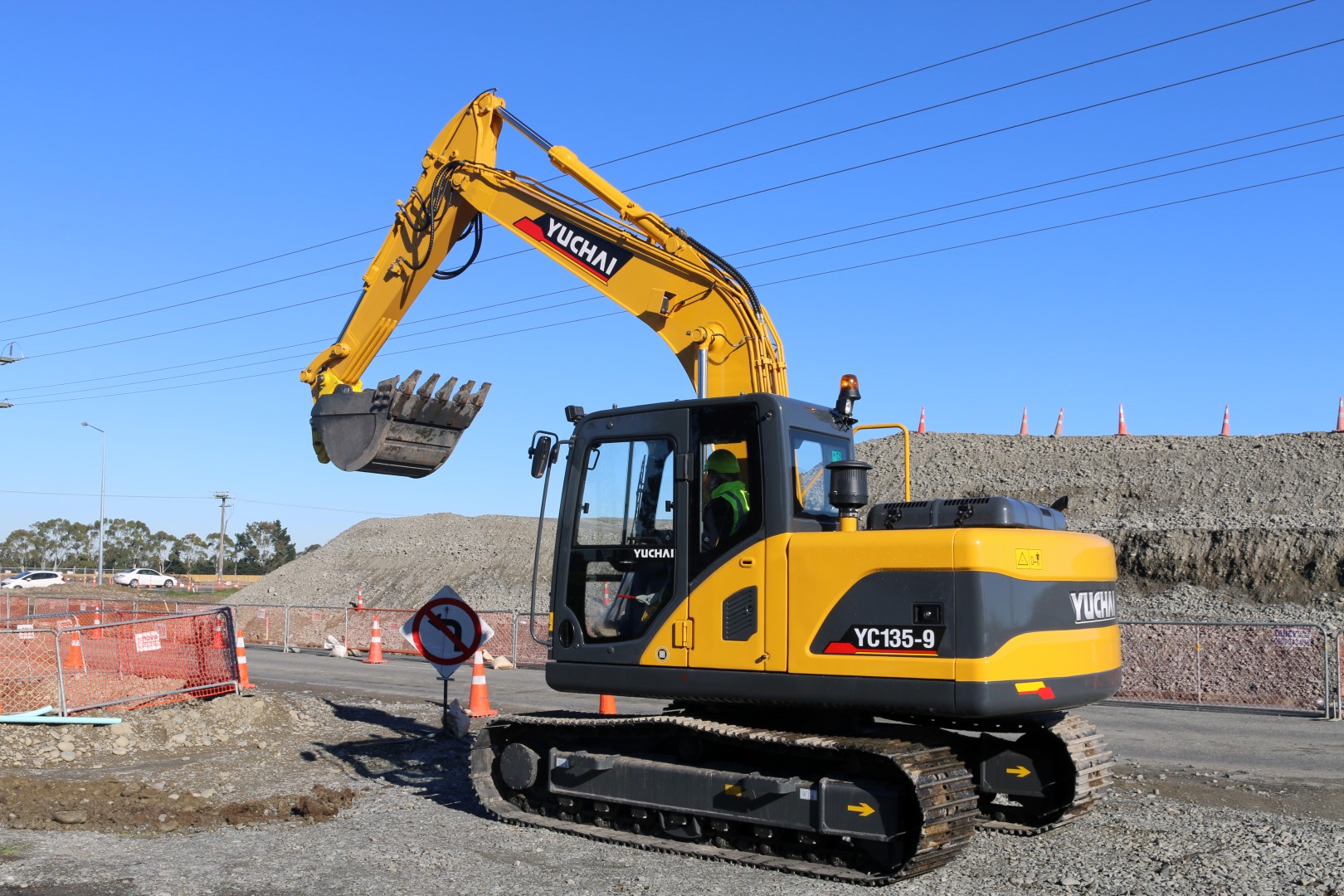

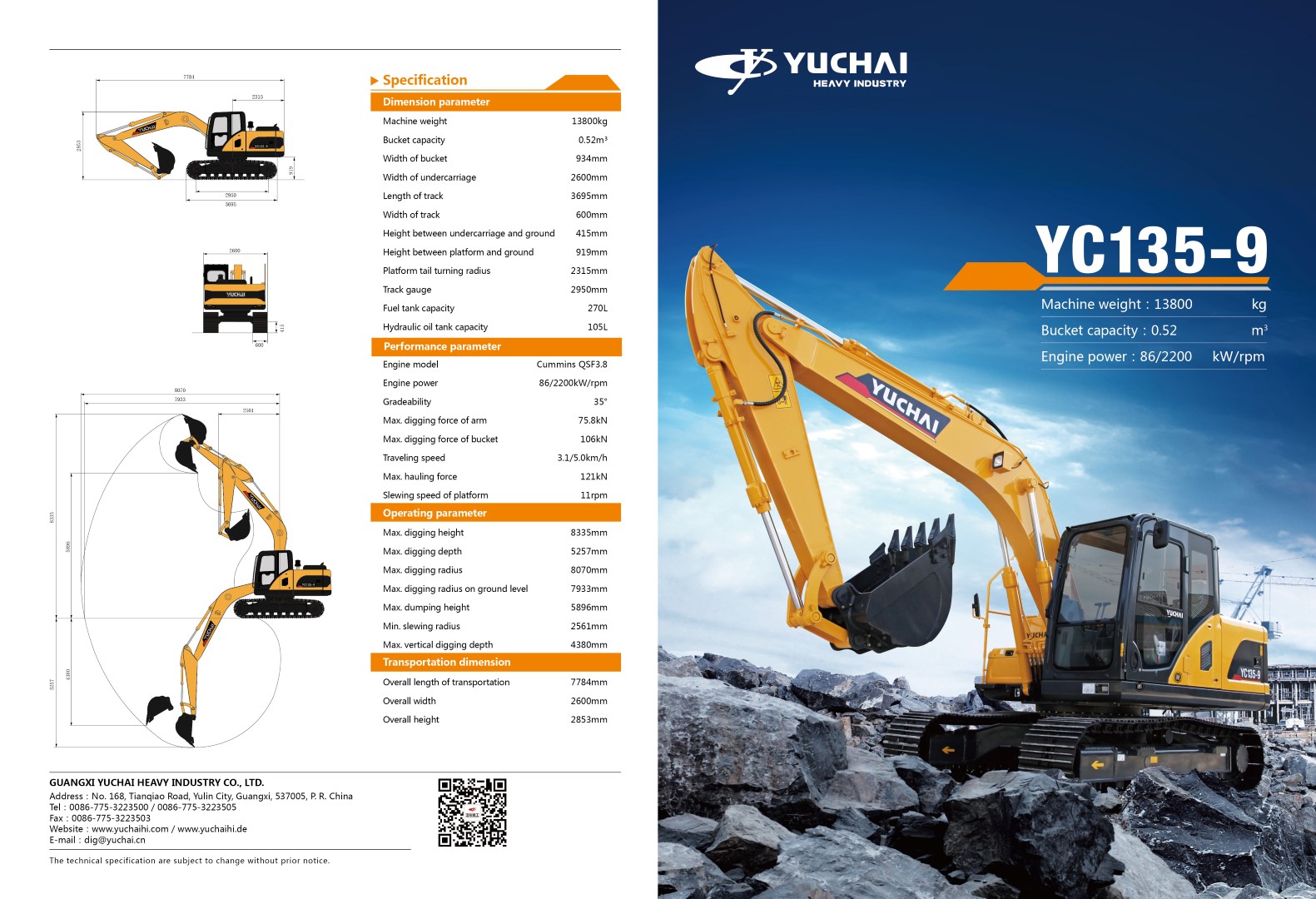

YC135-9

Category:

  • Powered by Cummins
  • Toshiba Hydraulics
  • Extra Strong Track Frame
  • Aux Hydraulics
  • Options include: Blade / Rops

Max Length 7745mm
 Machine Height 2720 mm
 Overall Width 2610mm
 Width of Platform 2410 mm
 Width of Track 600 mm
 Length of Track 3715 mm
 Platform Tail Turning 2350 mm
 Height Undercarriage to Ground 464.5 mm
 Height Platform to Ground 933.5 mm
 Engine Cummins B3.9-C Diesel
 Engine Power 86 kw @ 2200 rpm
 Machine Weight 13300 kg
 Std Bucket Capacity 0.52 cub m
 Std  Bucket Width 1385 mm
 Operating Hyd Pressure M 31.9 MPa
 Max Digging Force 84 kN
 Gradeability 58 %
 Pressure to Ground 38 Kpa
 Walking Speed 4.3 – 5.8 km/hr
 Max Hauling Force 104 kN
 Swing Speed 11 – 13 rpm
Max Digging Height 8290 mm
 Max Digging Depth 5245 mm
 Min Platform Tail Turning Radius 2643 mm
 Max Digging Radius 8050 mm
 Max Dumping Height 5900 mm
 Max Digging Reach Ground Level 7924 mm
