Yuchai YC80

EXCAVATOR

The Yuchai YC80 is equipped with a powerful engine offering maximum productivity on the job site. With advanced hydraulic systems and controls, operators can enjoy precise and smooth movements. Built with durability in mind, the YC80 is a reliable, long-lasting model built to handle tough working conditions.

Ideal for: Farming | Contractors

Yellow and black Yuchai excavator on rocky ground with green rolling hills and blue sky in the background.
Watch Here
Watch Here

KEY FEATURES

Machine Weight: 7700 kg

Bucket Capacity: 0.26 m³

Width of Bucket: 845 mm

Max. Gradeability: 35°

  • Make: Yanmar
    Model: 4TNV98C
    Engine Power: 42.2/2000 kw/rpm

  • Max. digging height: 7112 mm
    Max. digging depth: 4022 mm
    Max. digging radius: 6390 mm
    Max. digging radius on ground level: 6248mm
    Max. dumping height: 5055 mm
    Min. Slewing radius: 1766 mm
    Max. vertical digging depth: 3515mm

  • Transportation Dimensions
    Overall length: 3215 mm
    Overall width: 2260 mm
    Overall height: 2703 mm

    Dimensions
    Undercarriage width: 2150 mm
    Track length: 2783 mm
    Width of track: 450 mm
    Arm length: 1650 mm
    Boom length: 3710 mm

Product Guide
Product Guide
Contact us
Contact us

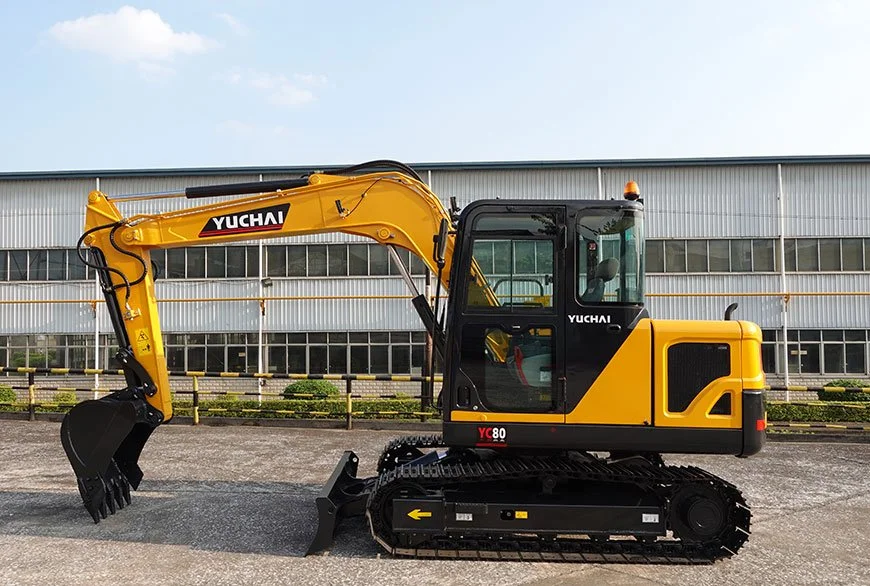

Yellow Yuchai YC80 mini excavator with a black bucket attachment parked outdoors near a building with large windows.

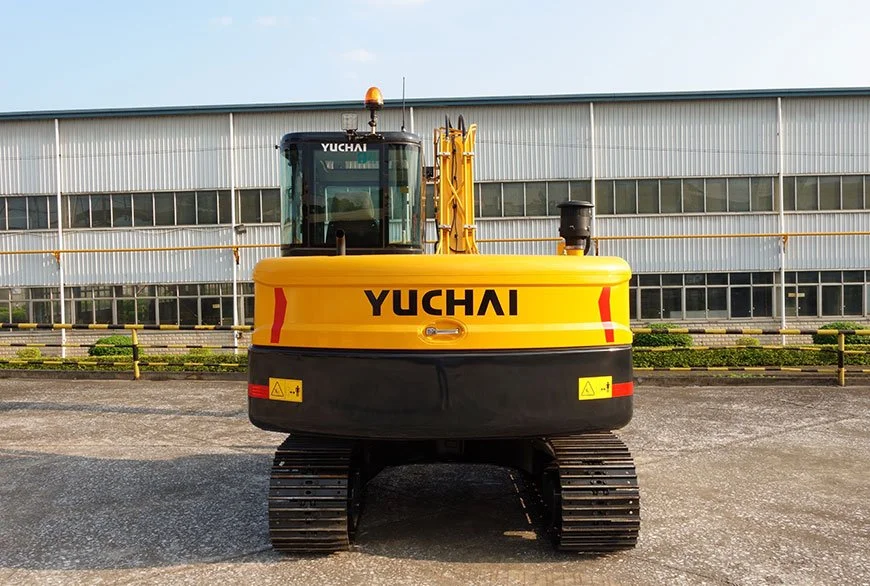

Yuchai compact yellow excavator with black undercarriage, parked in front of a large industrial building with multiple windows.

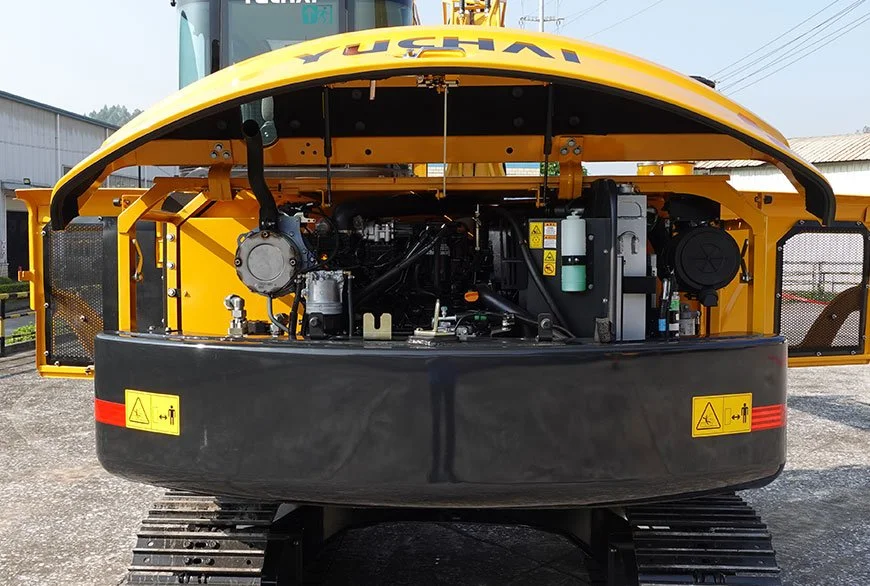

Front view of a yellow construction vehicle showing engine components and warning labels.

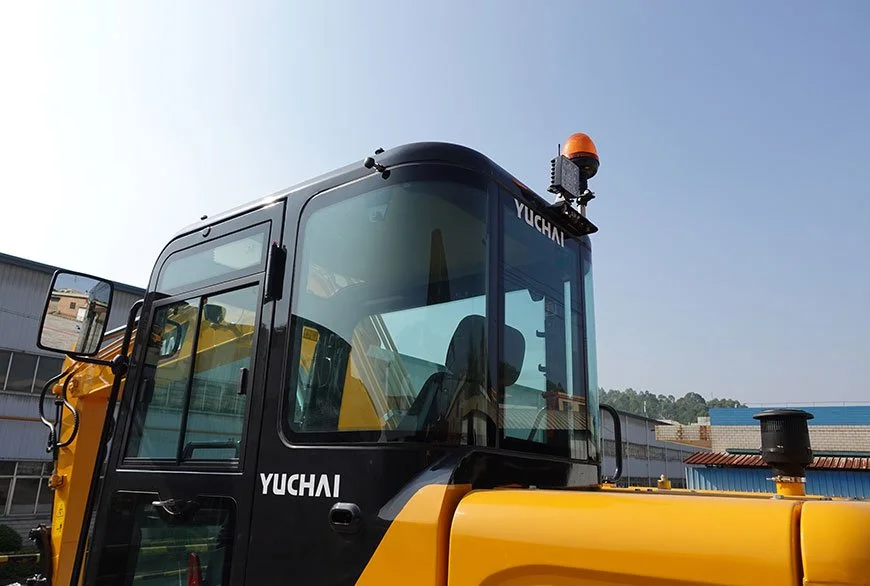

Close-up of a yellow and black construction vehicle with a cabin, labeled 'YUCHAI', on a clear day.

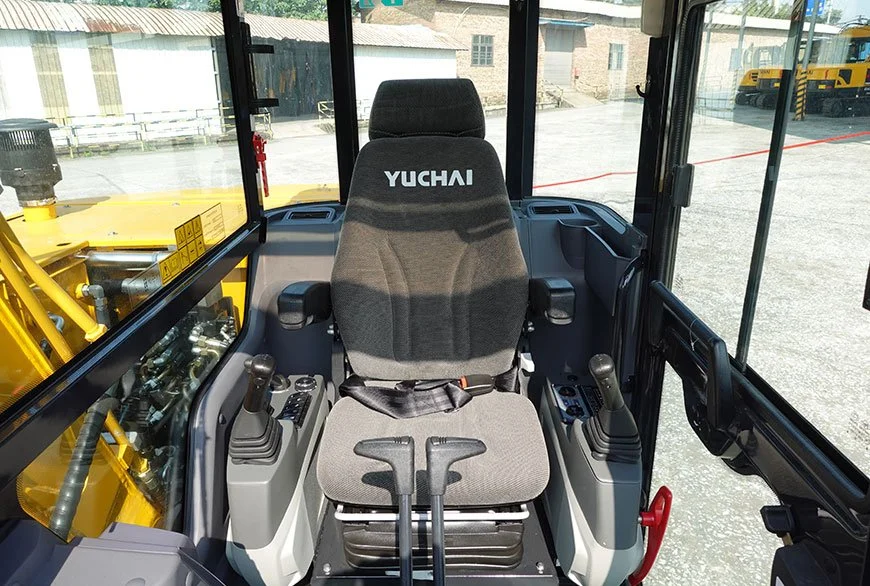

Interior of a construction vehicle with control levers, a Yuchai branded seat, and a view of construction equipment outside.

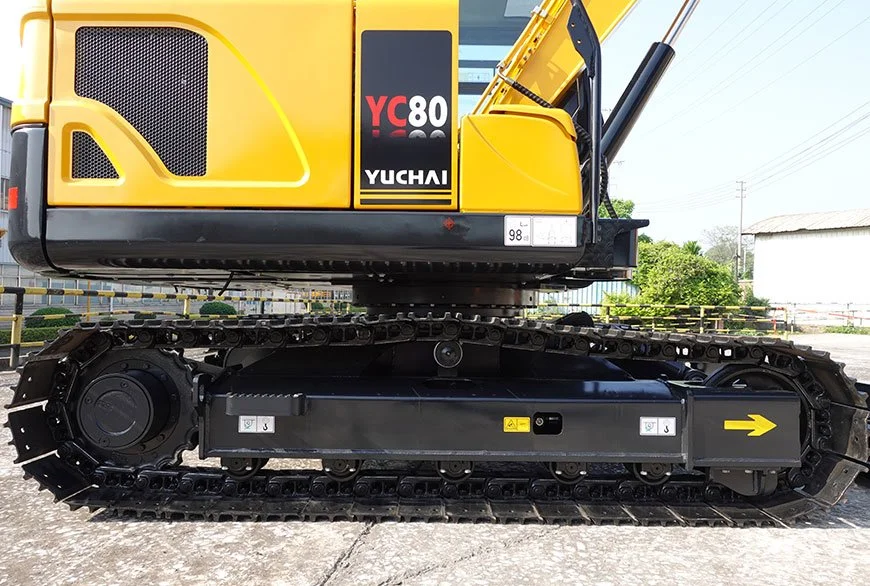

Close-up of a yellow Yuchai YC80 excavator, showing the side view of the machine with black tracks and hydraulic arm.

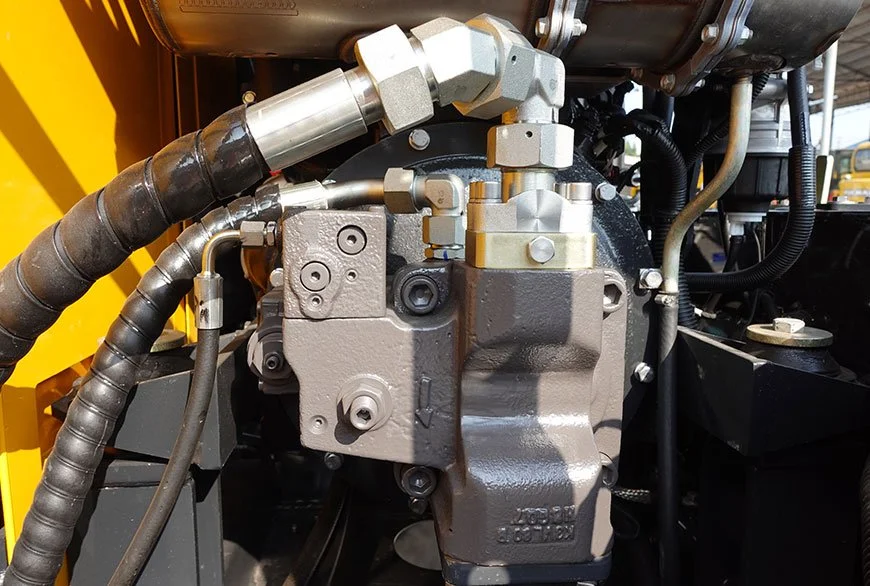

Close-up view of hydraulic components and hoses on heavy machinery.

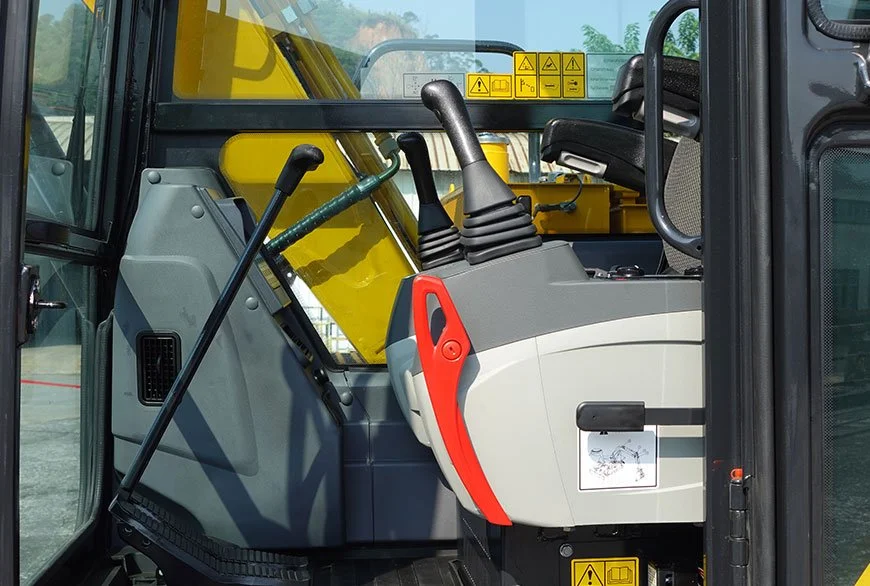

Close-up of the interior cabin of a construction excavator, showing the seat, control levers, and warning stickers.

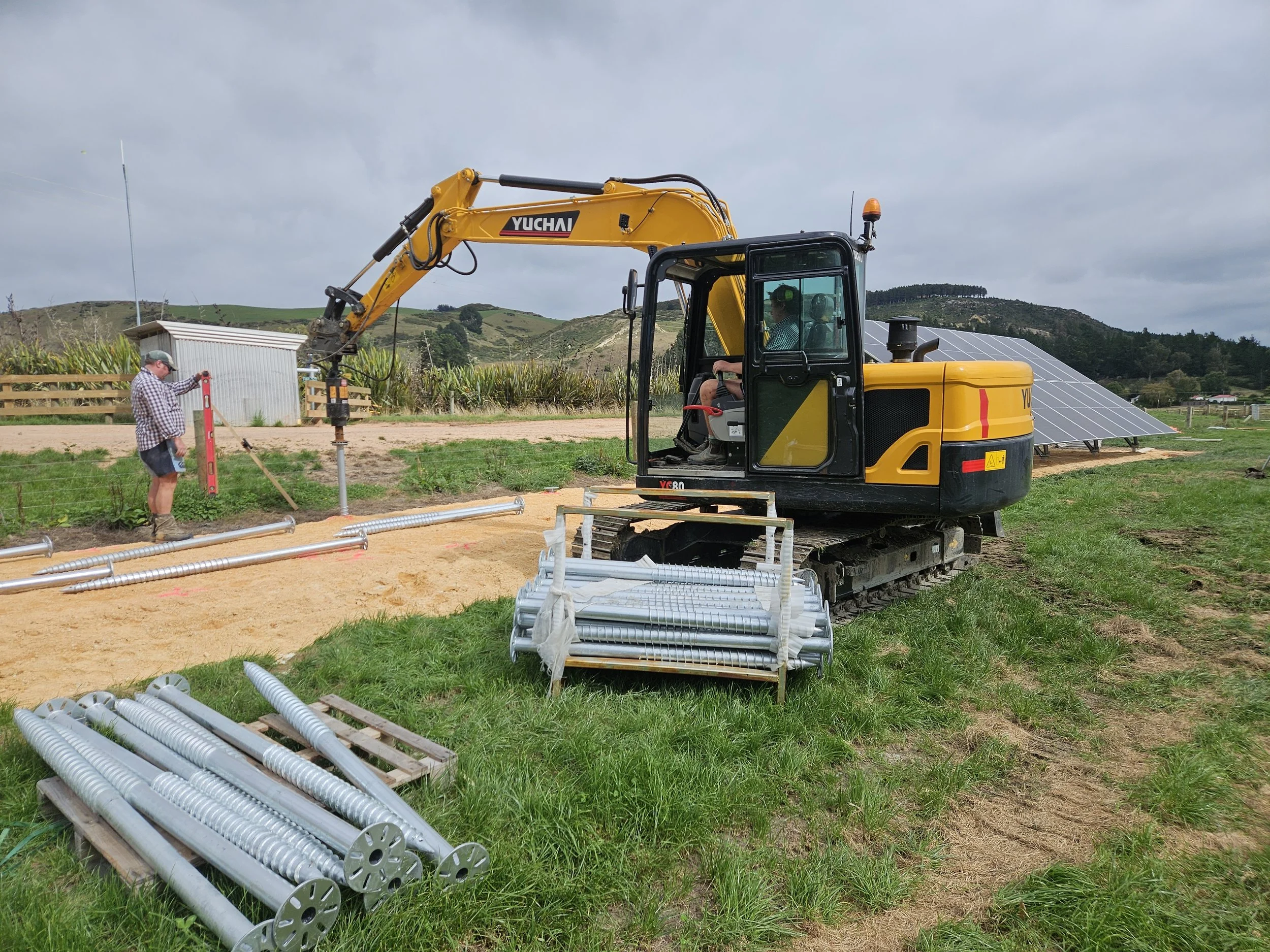

A small yellow excavator digging in a grassy field with mountains in the background. A person in a checkered shirt and cap operates the excavator, while another person in sunglasses and a cap observes nearby. Solar panels are visible on a hillside in

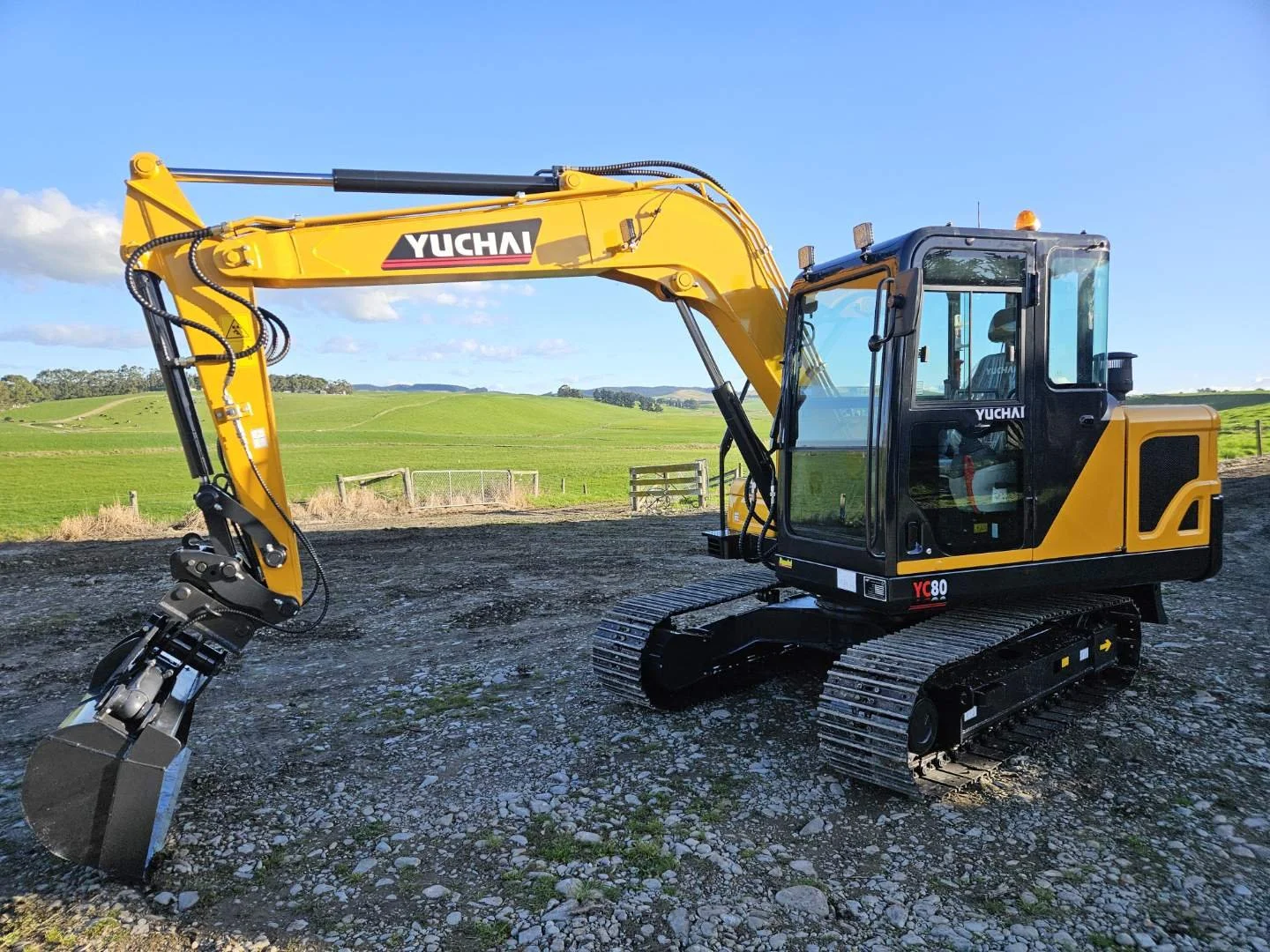

A yellow and black Yuchai excavator on a gravel surface with green fields and blue sky in the background.

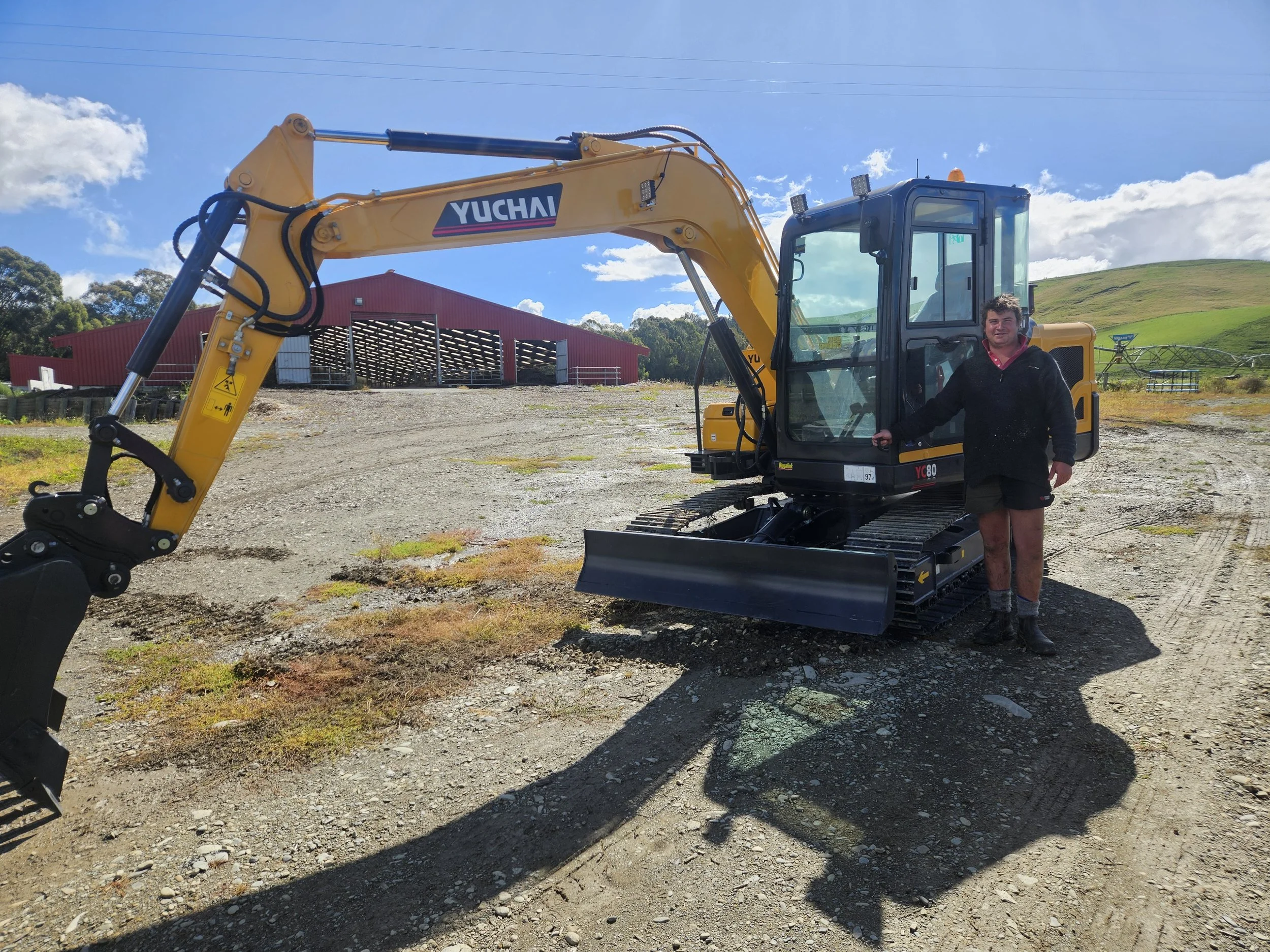

A man standing next to a small yellow excavator on a dirt field with green hills and a barn in the background under a blue sky with scattered clouds.

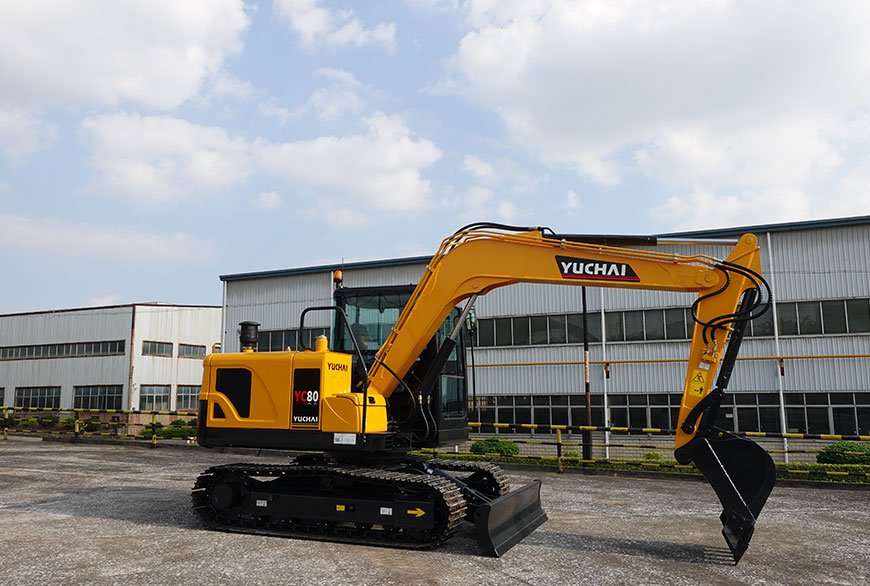

Yellow Yuchai excavator with a black blade and tracked wheels parked in front of industrial buildings.
