Yuchai u60

Mini EXCAVATOR

The Yuchai U60 Mini Excavator is a versatile and reliable machine designed to meet the demands of various industries. Known for its compact size, fuel efficiency, and exceptional digging power, the U60 is perfect for tight spaces, urban construction, landscaping, and small-scale excavation projects.

Ideal for: Landscapers | Builders | Contractors | Life Style Block Maintenance

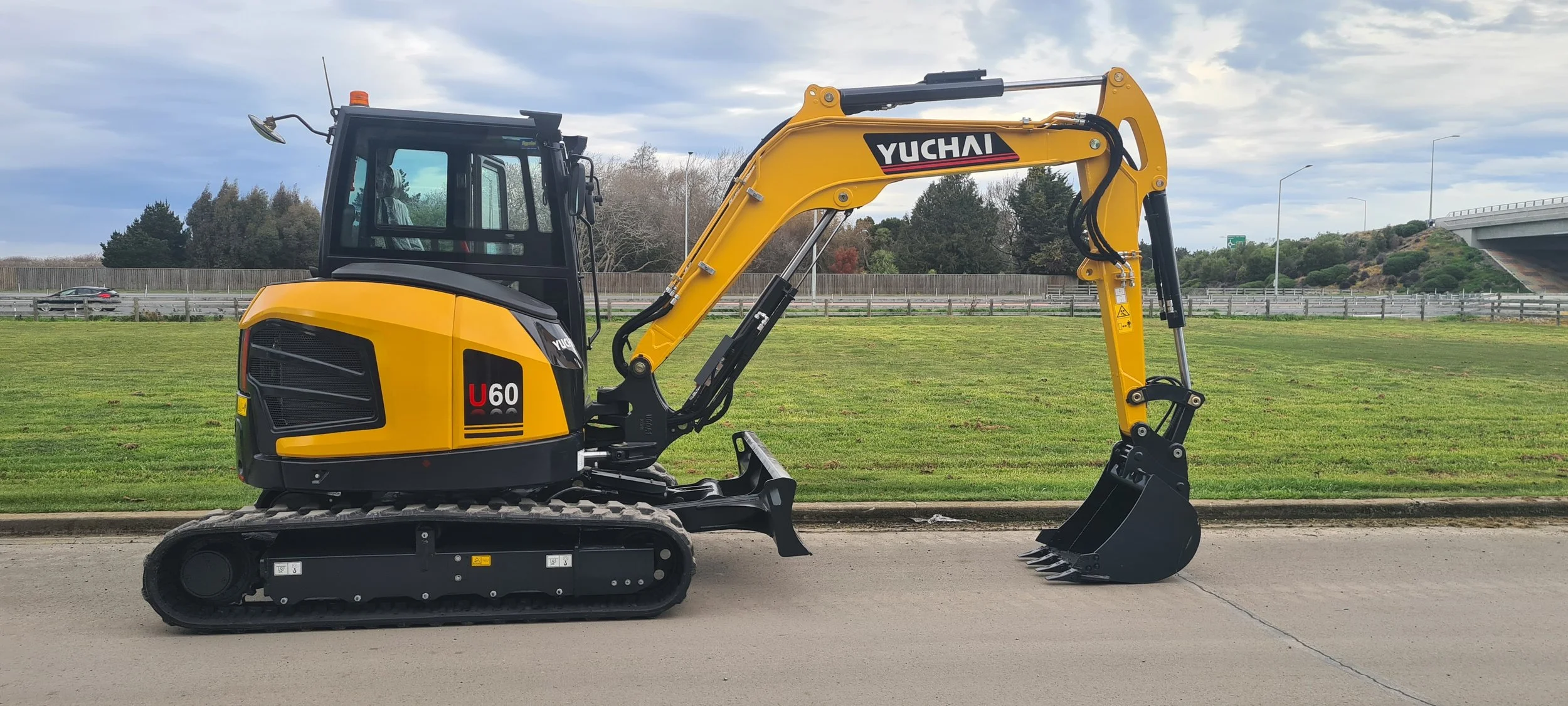

A yellow mini excavator with black tracks and arm, labeled "Yuchai U60" on a grassy area beside a paved road, with trees, fences, and a highway overpass in the background under a cloudy sky.
Watch Here

KEY FEATURES

Machine Weight: 5600kg

Bucket Capacity: 0.18m³

Width of Bucket: 470 mm

Max. Gradeability: 35°

  • Make: Kubota
    Model: V2607
    Engine Power: 35/2200 kw/rpm

  • Max. digging height: 5740 mm
    Max. digging depth: 3720 mm
    Max. digging radius: 6100 mm
    Max. dumping height: 4040 mm
    Min. Slewing radius: 2210 mm

  • Transportation Dimensions
    Overall length: 5690 mm
    Overall width: 1943 mm
    Overall height: 2565 mm

    Dimensions
    Undercarriage width: 1865 mm
    Track length: 2494 mm
    Width of track: 400 mm
    Arm length: 1700 mm
    Boom length: 2900 mm

Product Guide
Contact us

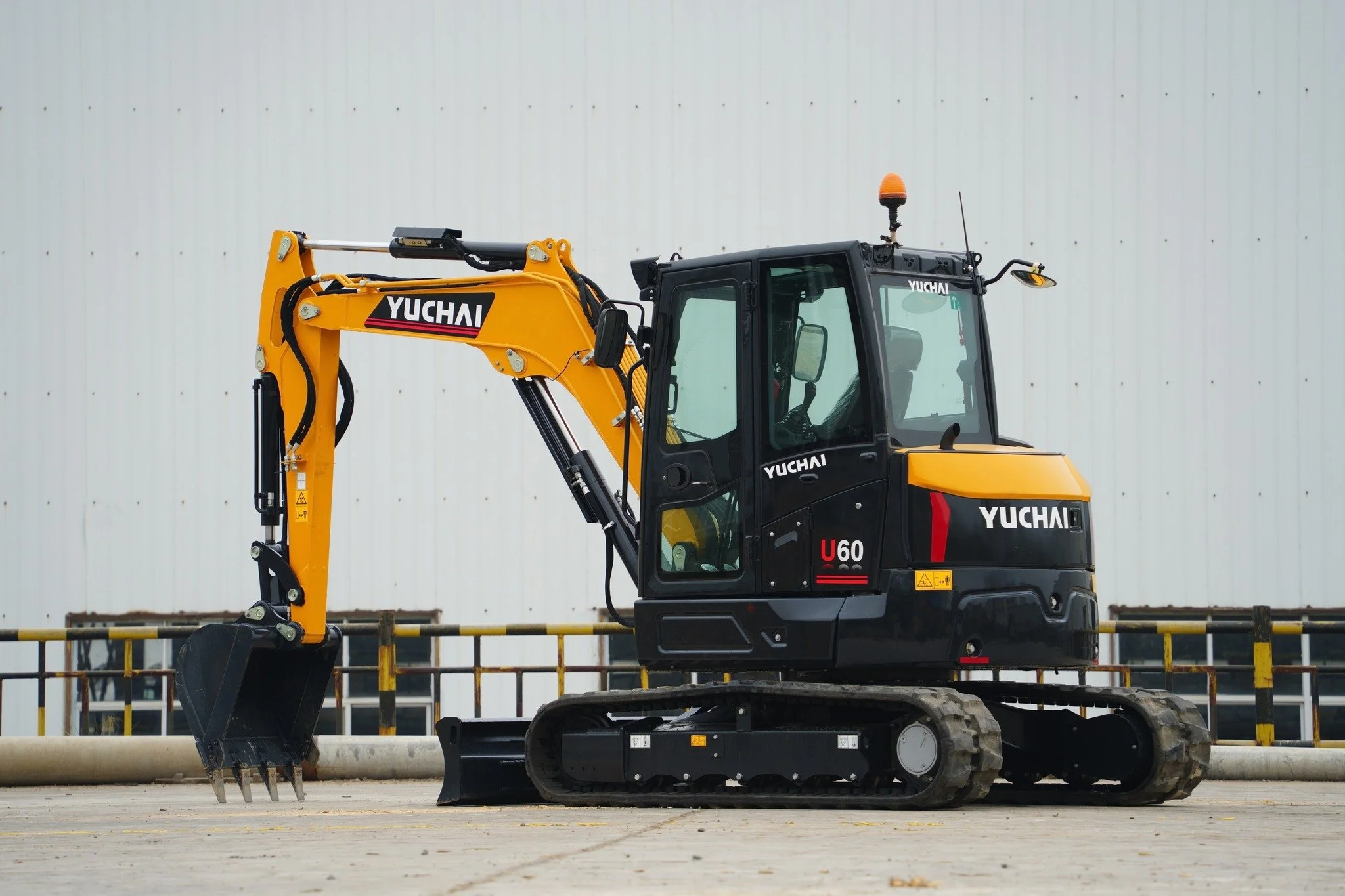

Yellow and black Yuchai mini excavator with a bucket attachment, parked on a paved surface in front of a corrugated metal wall.

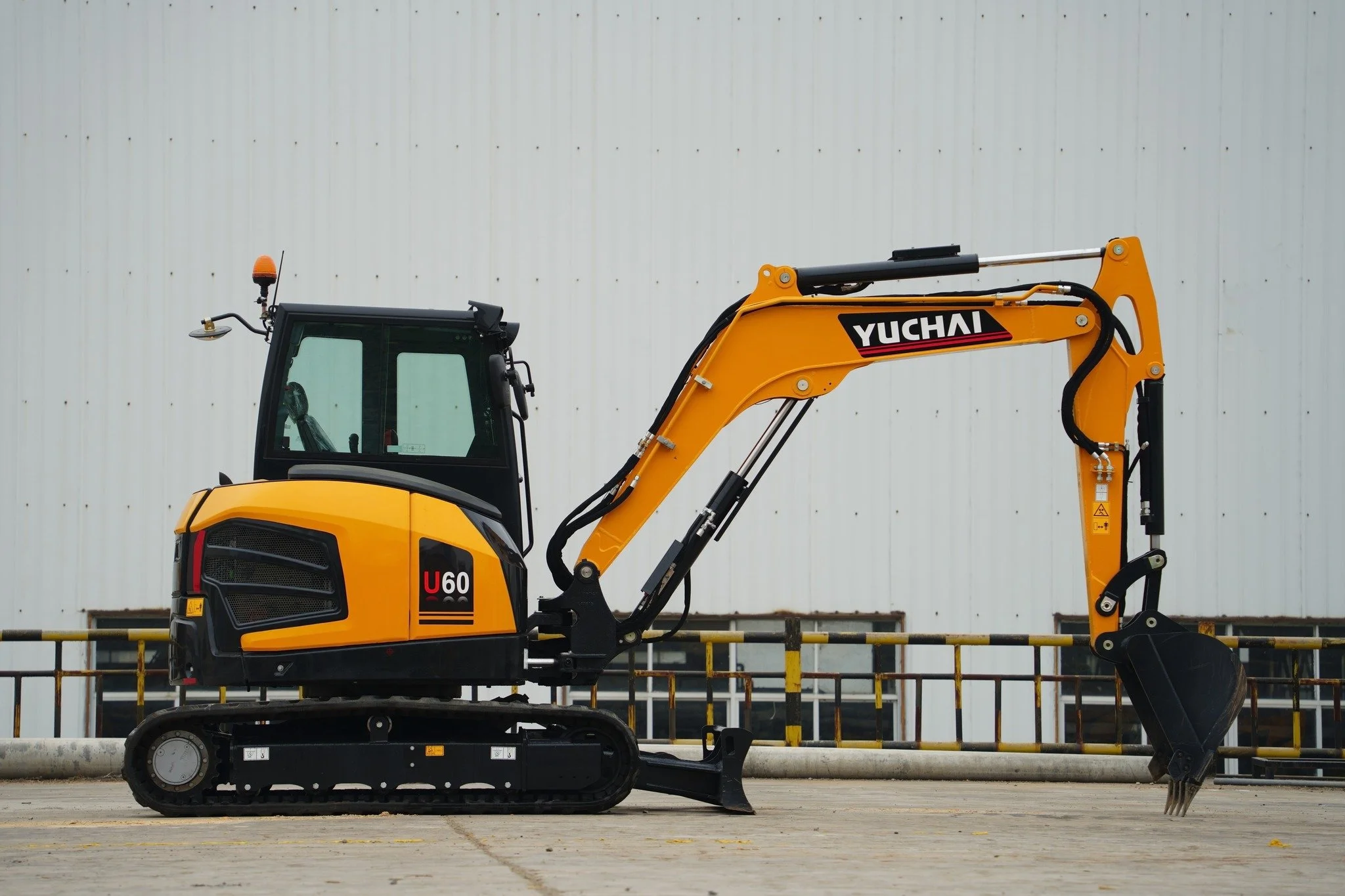

Yellow and black Yuchai mini excavator with tracked wheels and hydraulic arm, parked outdoors on concrete surface in front of a large white industrial building with small windows.

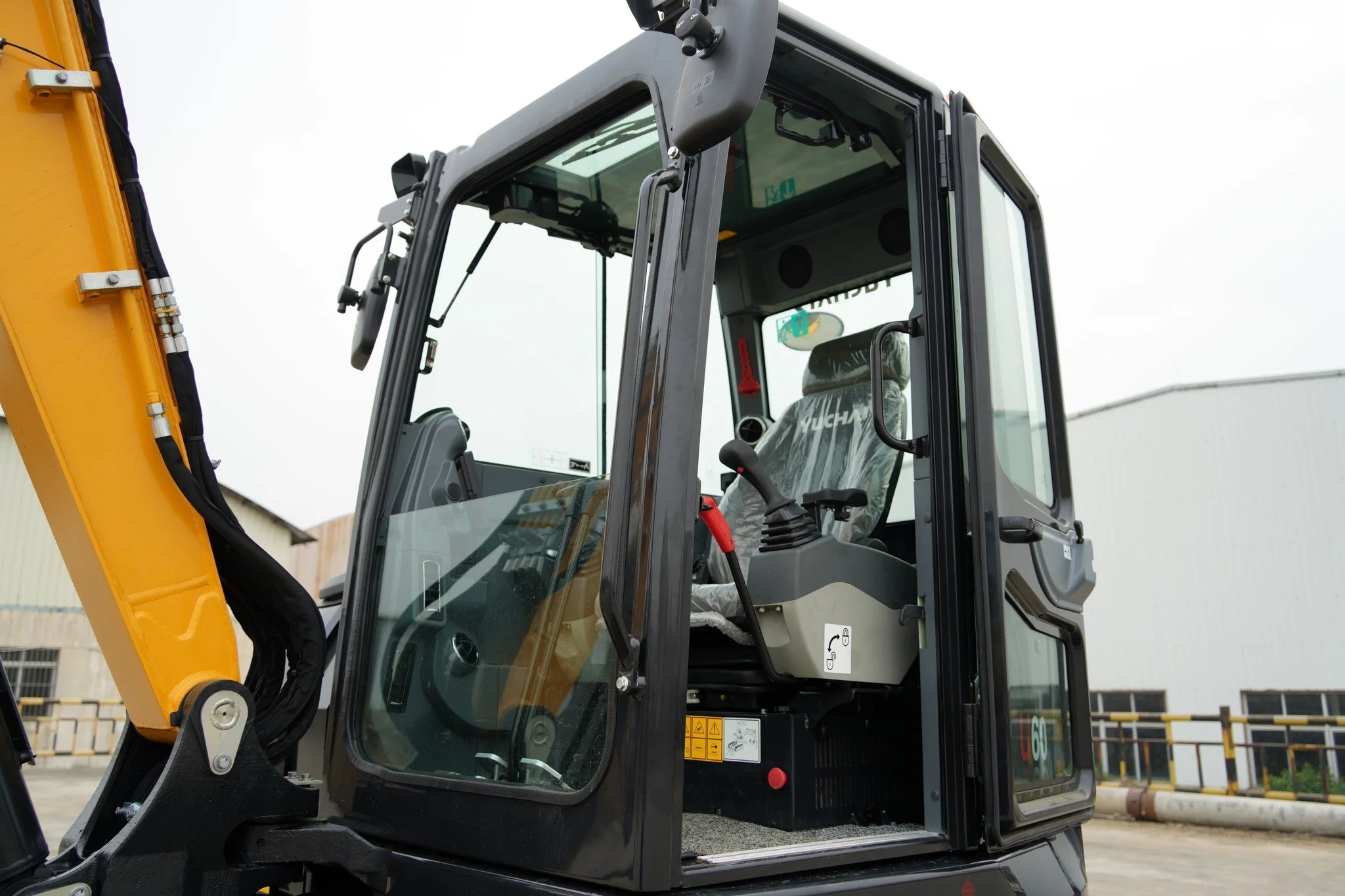

Close-up of a construction vehicle's cabin, showing the glass door, black frame, and a yellow arm with hydraulic hoses attached.

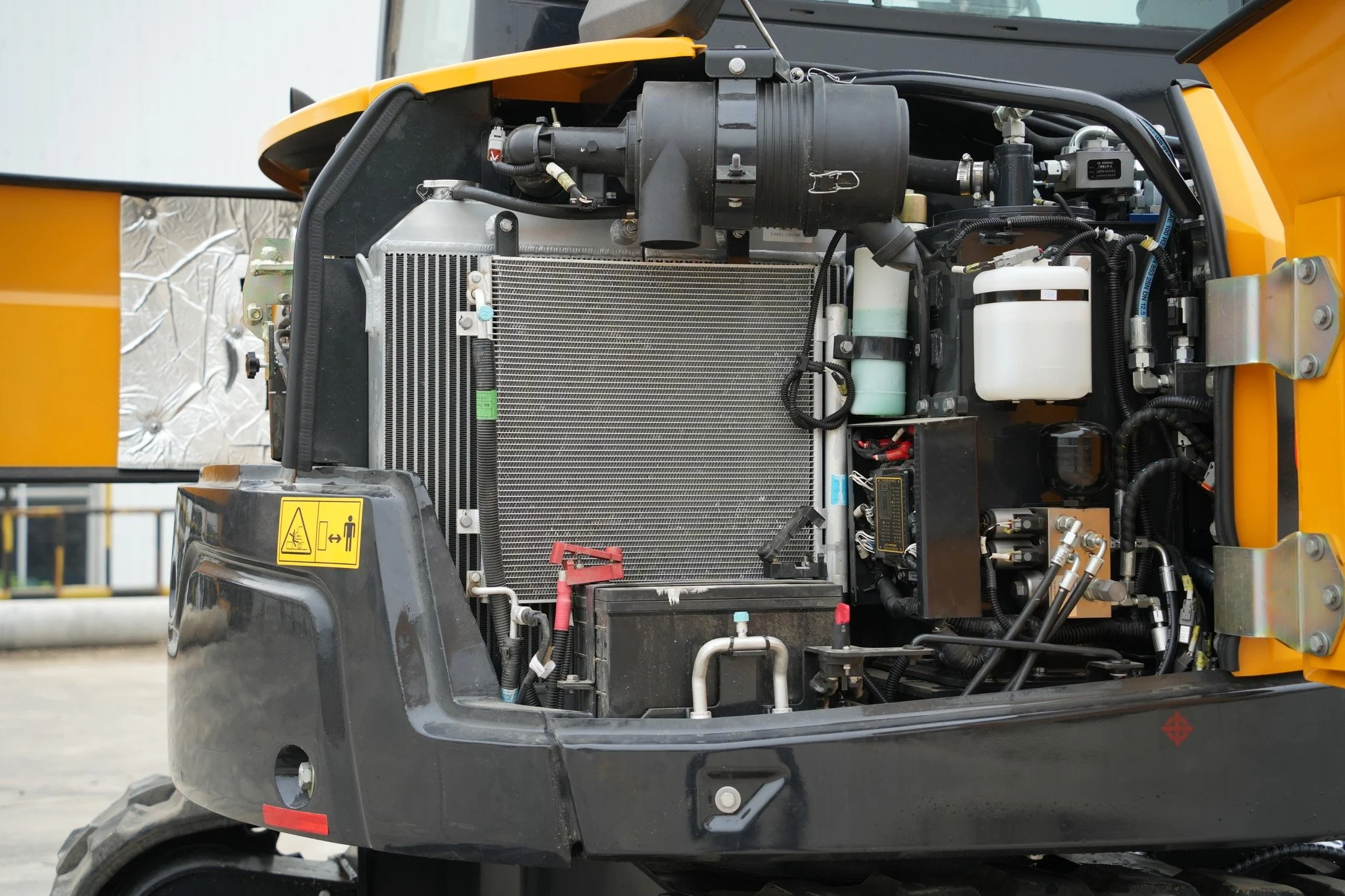

Close-up of an industrial machine's internal components, including a radiator, hoses, and various mechanical parts, with a yellow exterior and some warning labels.

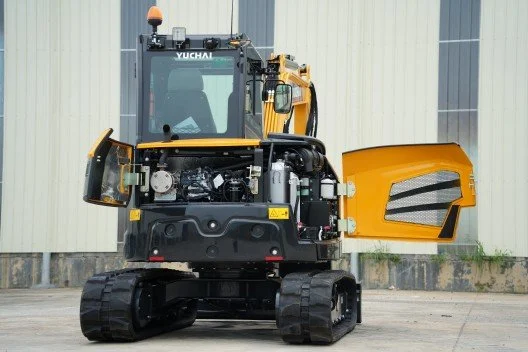

A yellow and black compact excavator with tracks, parked outdoors against a beige industrial building.

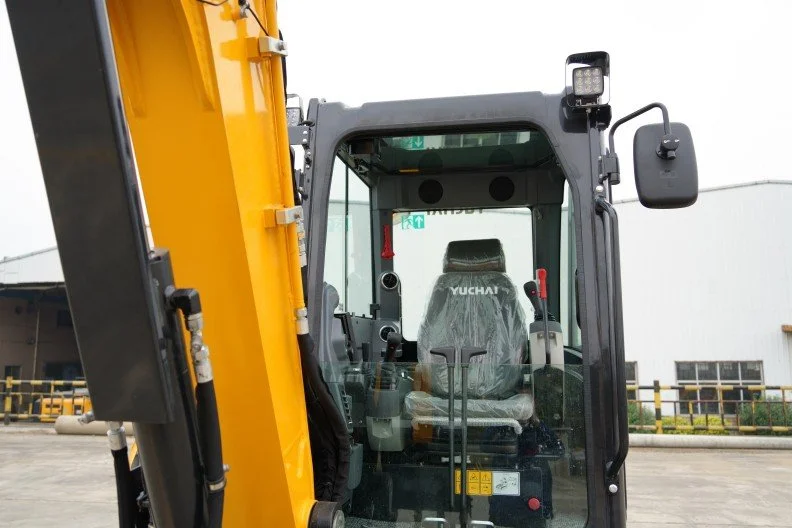

Front view of a Yuchai excavator, showing the operator's cabin with controls and seat inside, outdoors at a construction site or equipment yard.

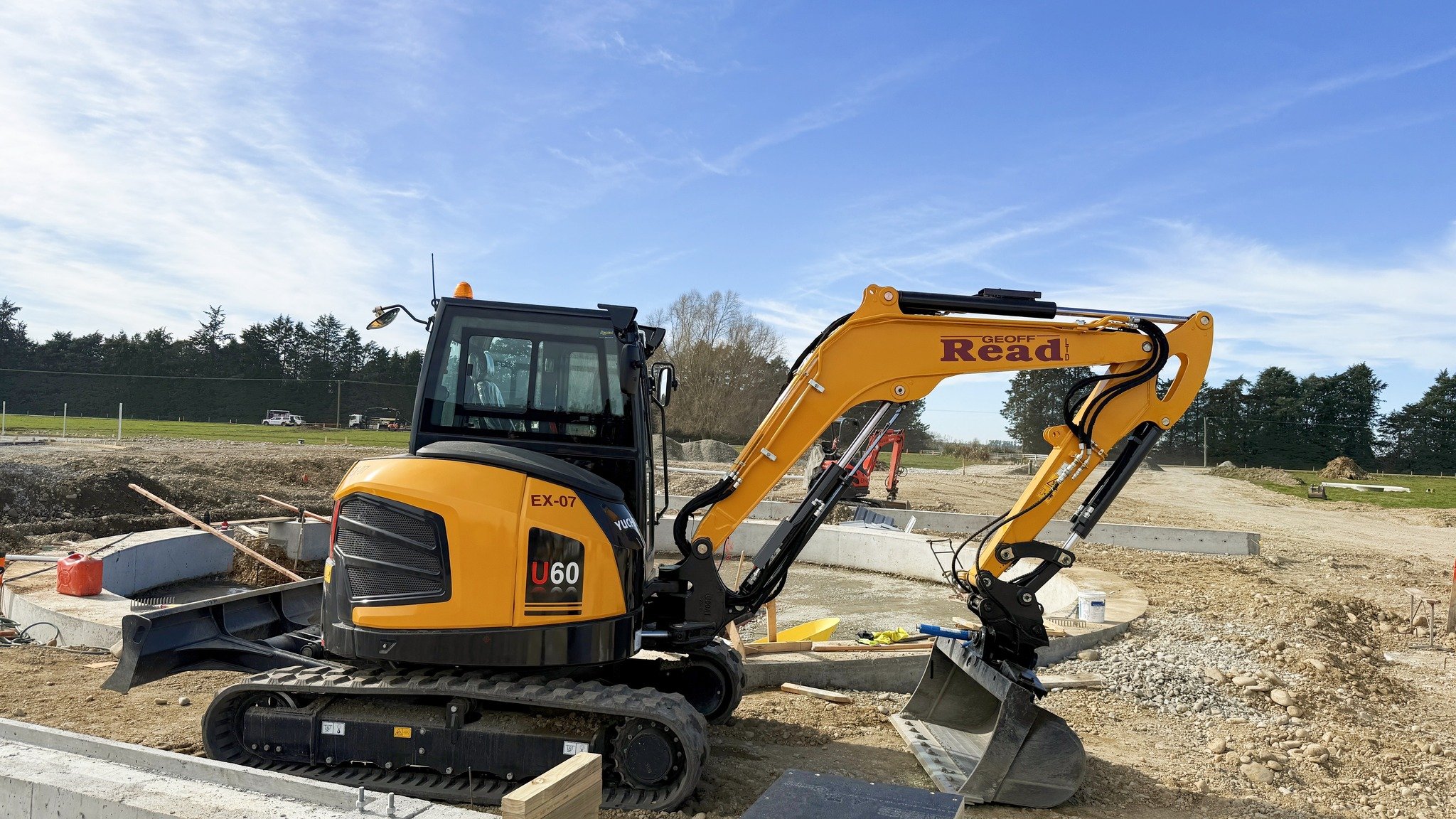

Construction site with a yellow mini excavator on dirt ground, under a blue sky with some clouds, trees in the background.

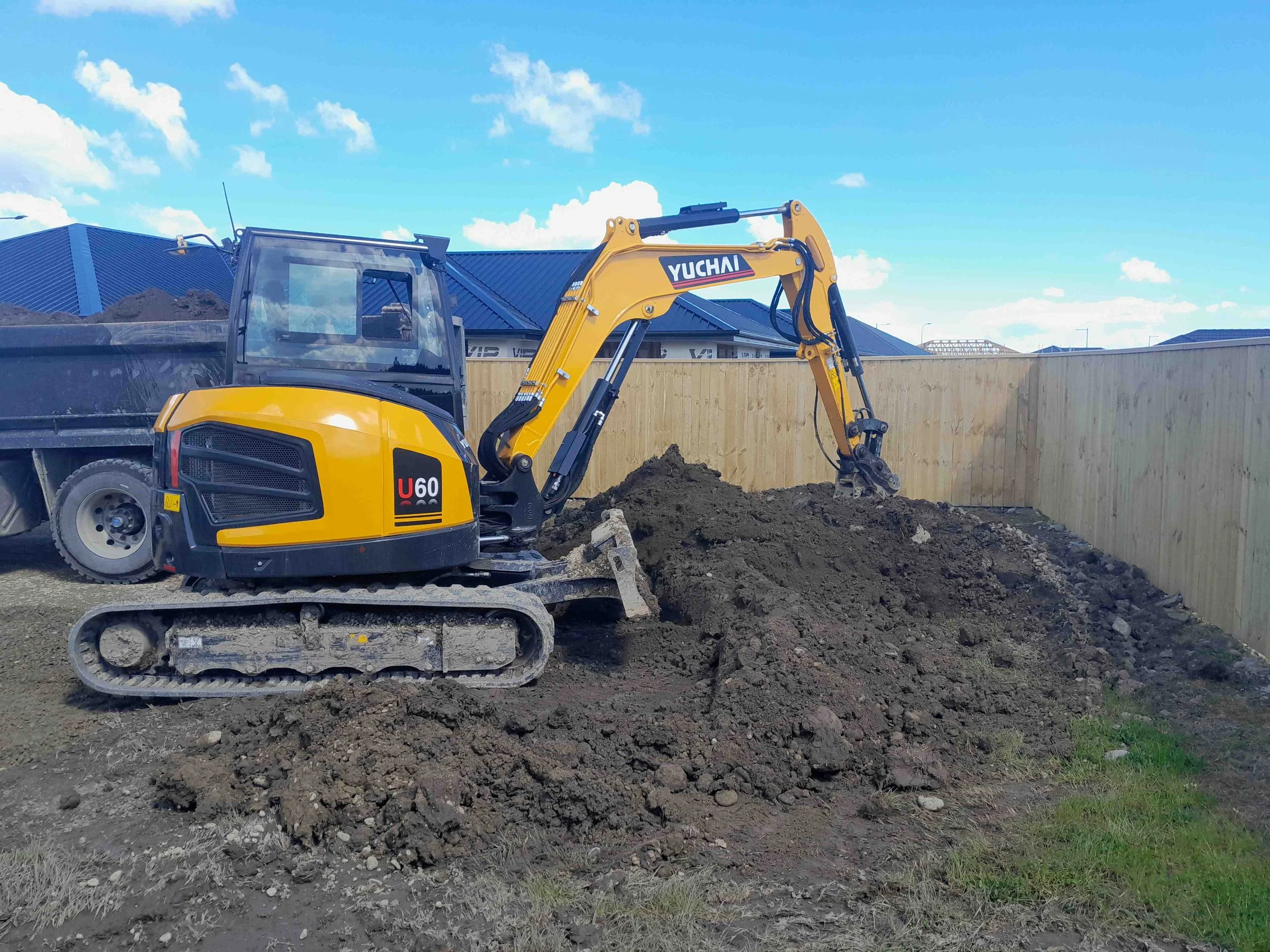

A yellow Yuchai mini excavator digger on a construction site with dark soil pile in front, a wooden fence, and a blue sky with some scattered clouds in the background.
