YUCHAI U35
MINI EXCAVATOR

The Yuchai U35 is a true zero-tail-swing excavator that can work in any space wide enough for its small zero-tail-swing body to pass through. It eliminates the need for the operator to worry about checking rear clearance. This 3-ton mini excavator never shies away from work, and is a great option for builders, contractors, and landscaping projects.

Ideal for: Landscapers | Builders | Life Style Block Maintenance

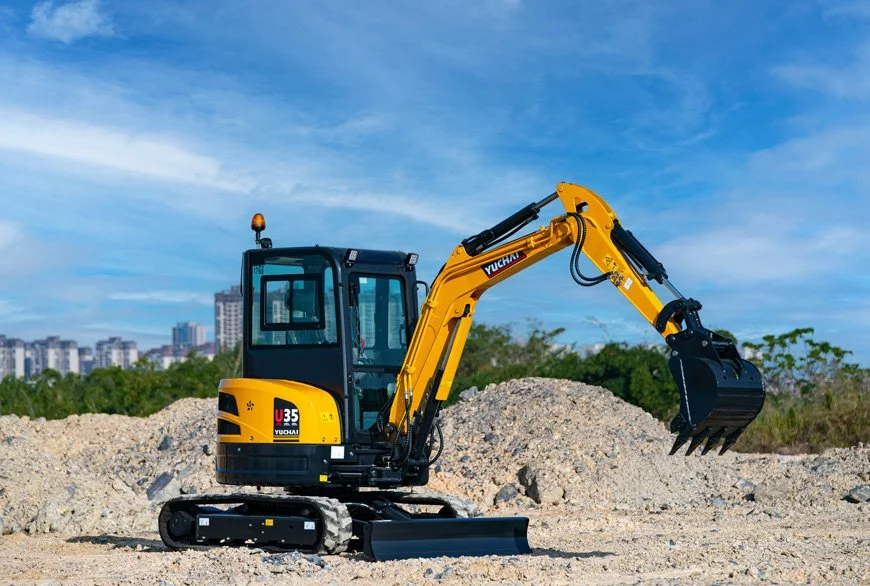

Small yellow and black excavator on dirt with construction site and city skyline in background under blue sky.
WATCH HERE

KEY FEATURES

Machine Weight: 3860kg

Bucket Capacity: 0.12m³

Width of Bucket: 617mm

Max. Gradeability: 35°

  • Make: Yanmar
    Model: 3TNV88F
    Engine Power: 18.2/2200 kw/rpm

  • Max. digging height: 5156 mm
    Max. digging depth: 3170 mm
    Max. digging radius: 5557 mm
    Max. dumping height: 3588 mm
    Min. Slewing radius: 2260 mm

  • Transportation Dimensions
    Overall length: 4853 mm
    Overall width: 1800 mm
    Overall height: 2575 mm

    Dimensions
    Undercarriage width: 990/1240 mm
    Track length: 2093 mm
    Width of track: 300 mm
    Arm length: 1400 mm
    Boom length: 2500 mm

Product Guide
Contact us

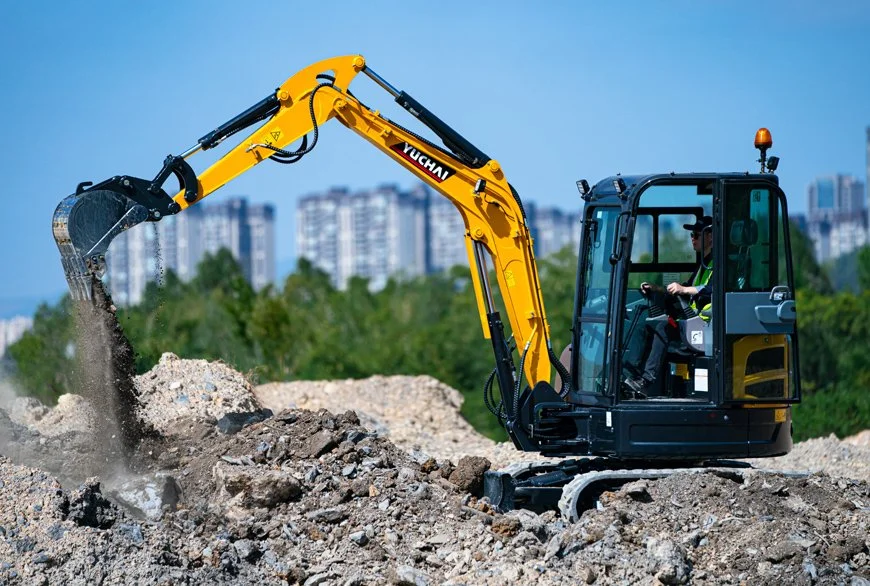

A yellow and black excavator with the brand logo 'Yuchai' is moving dirt on a construction site, with urban buildings in the background.

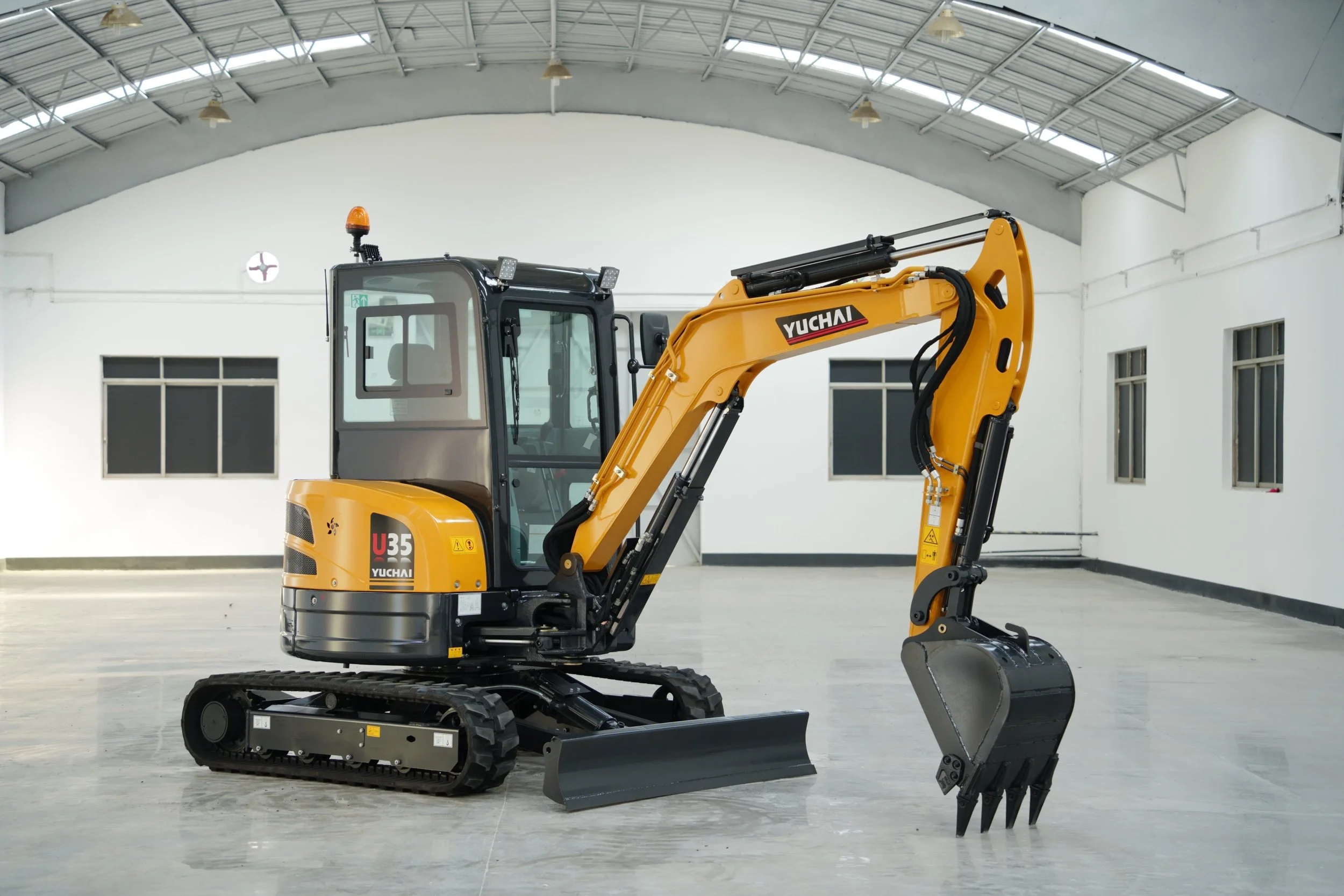

A yellow and black Yuchai mini excavator inside a large empty industrial building with a high metal roof and white walls.

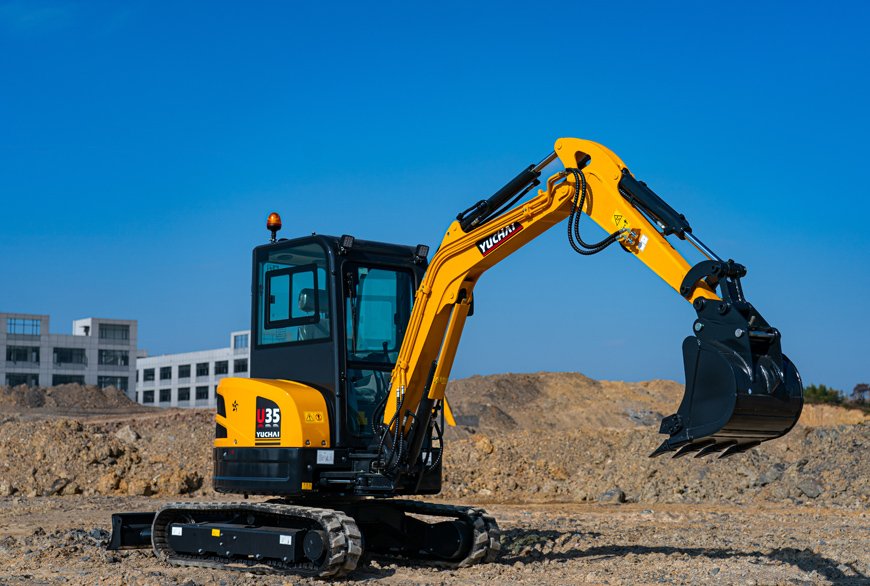

A yellow and black Yuchai mini excavator working on a dirt construction site with buildings in the background and clear blue skies.

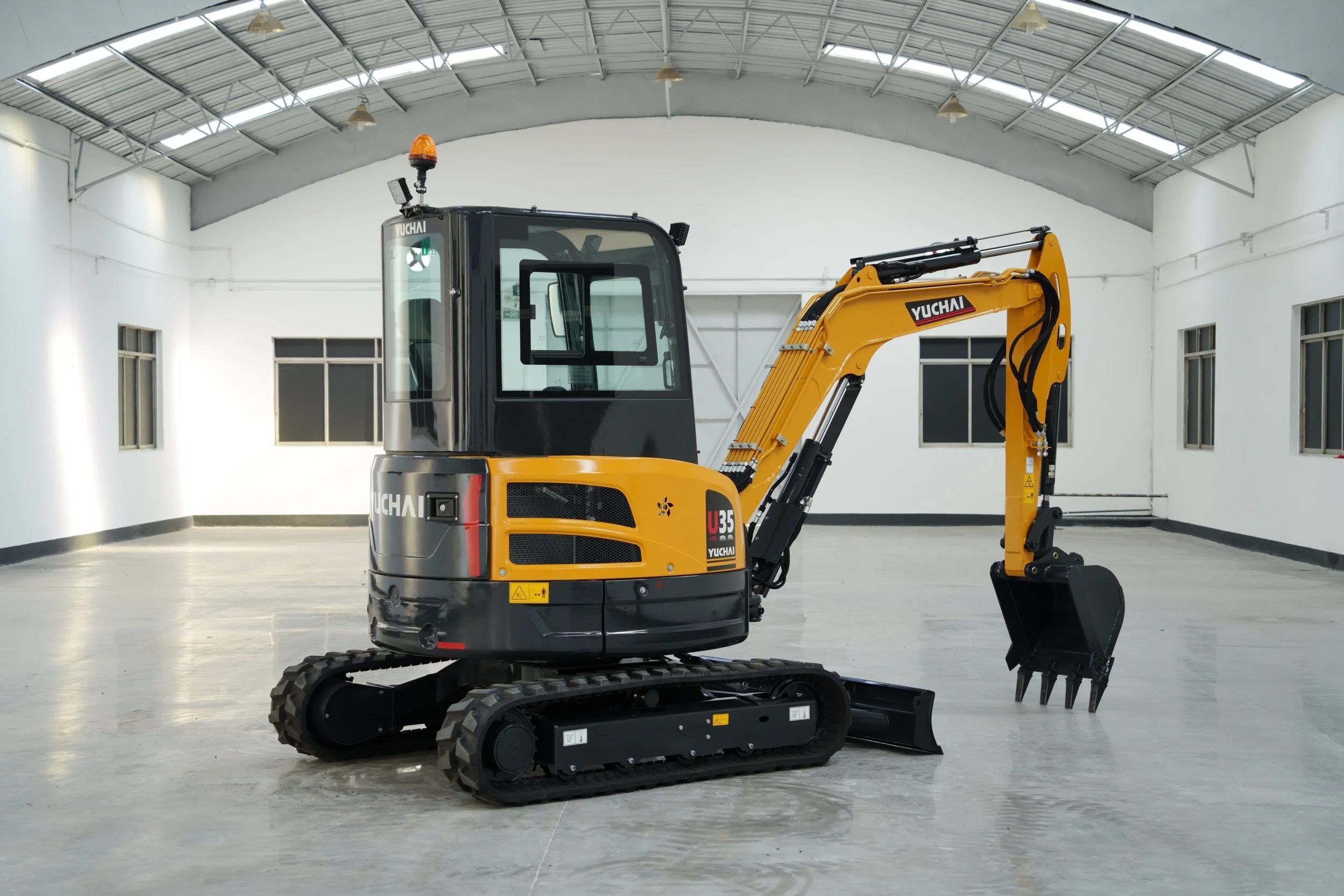

A small yellow and black Yuchi mini excavator inside a spacious, well-lit warehouse with high ceilings and large windows.

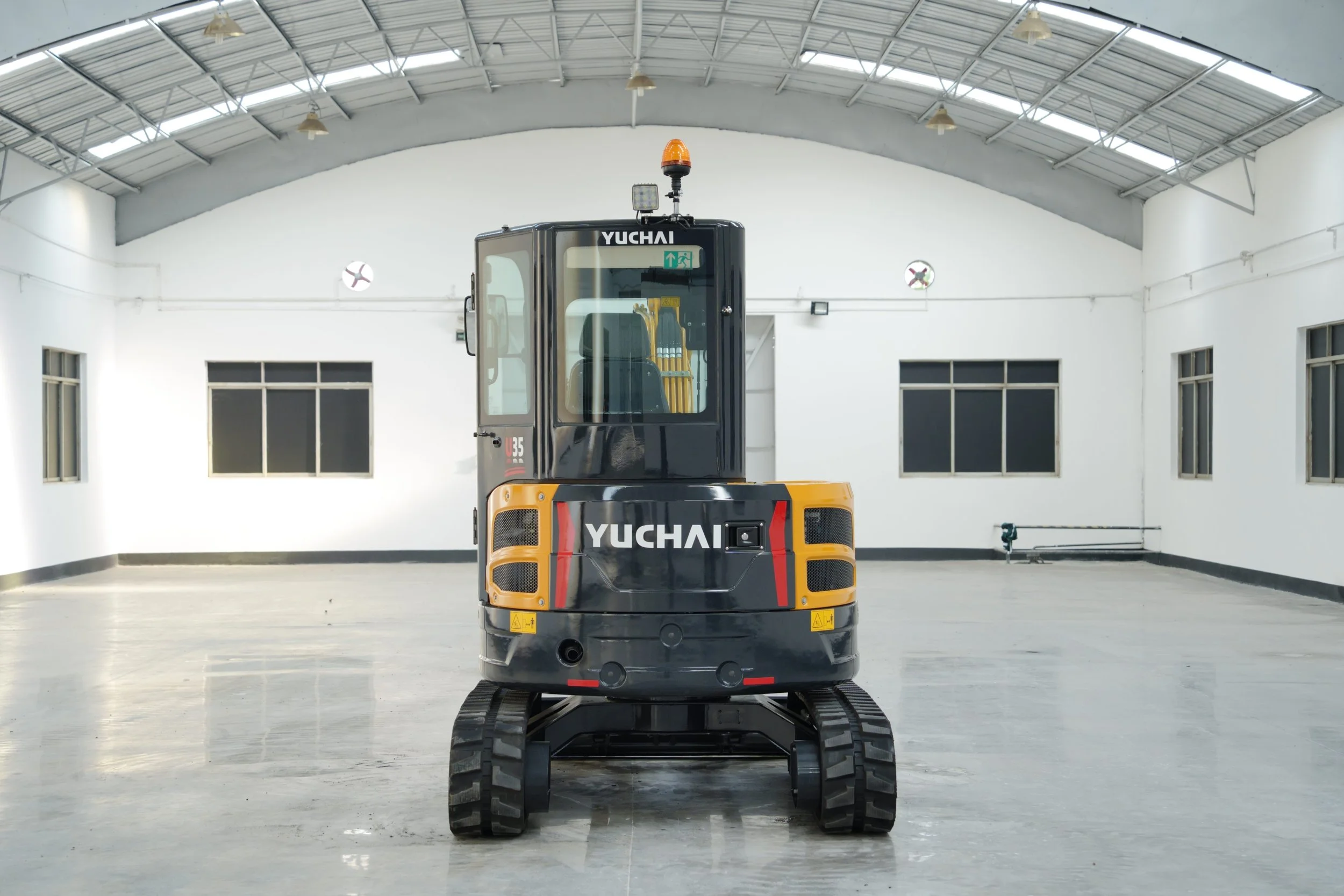

A Yuchai compact excavator with tracks is positioned in an indoor space with white walls, windows, a gray floor, and a curved metal ceiling. The front of the excavator is facing the camera.

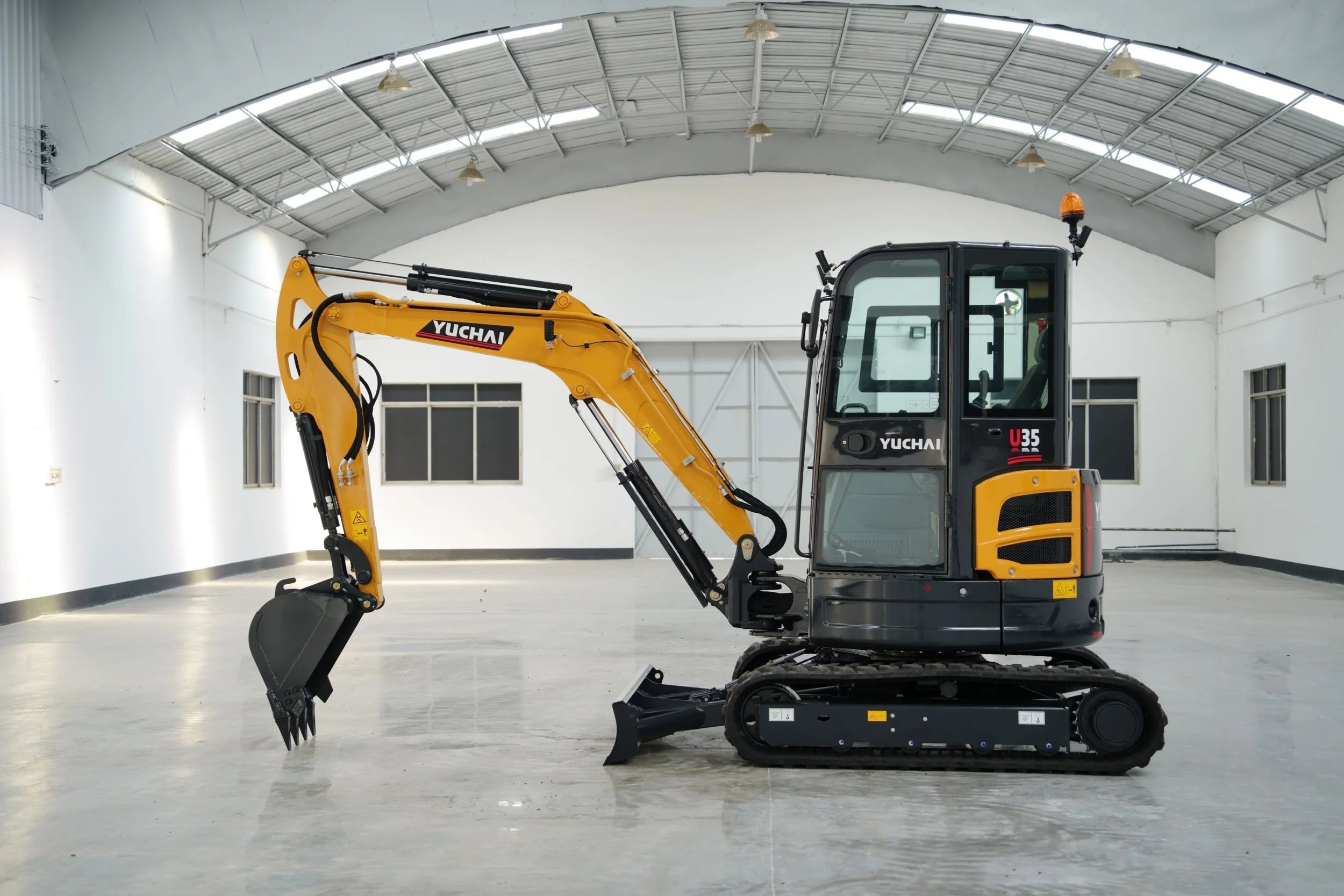

Small yellow and black Yuchai excavator inside a spacious, well-lit warehouse with a curved metal ceiling and concrete floor.
A small yellow Yuchai excavator inside an empty industrial building with a high arched ceiling and large windows.

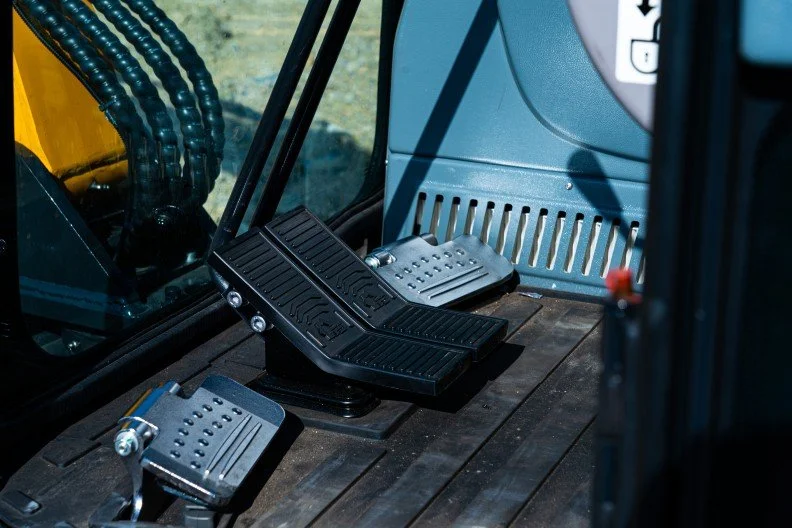

Close-up of the foot pedals inside the cabin of an excavator or heavy machinery, including accelerator and brake pedals.

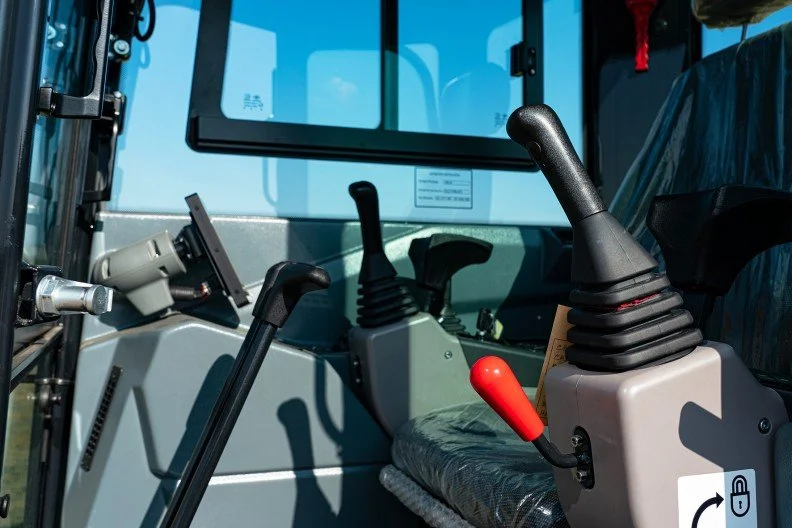

Interior of a construction vehicle cabin with two control levers, one with a red handle, and a screen on the dashboard.

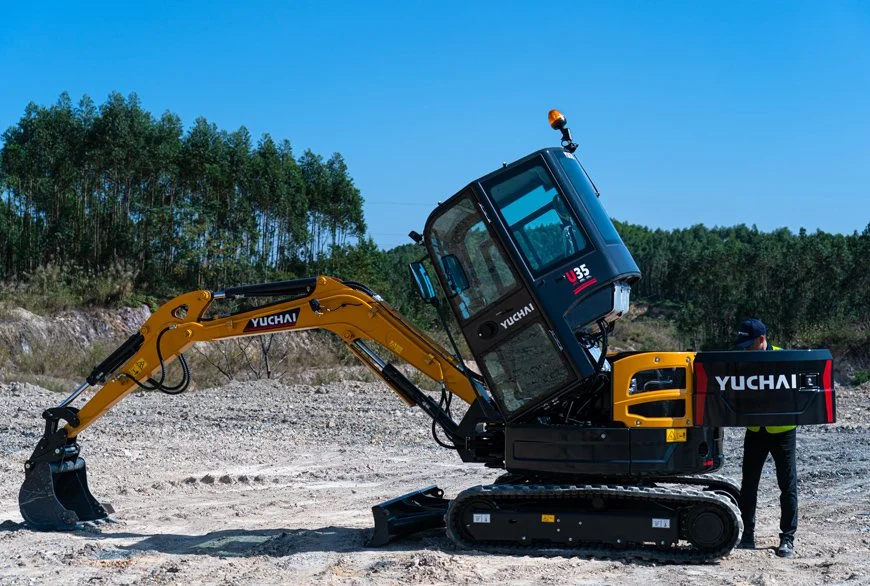

A Yuchai mini excavator on a construction site with a person standing nearby, with trees in the background and a clear blue sky.

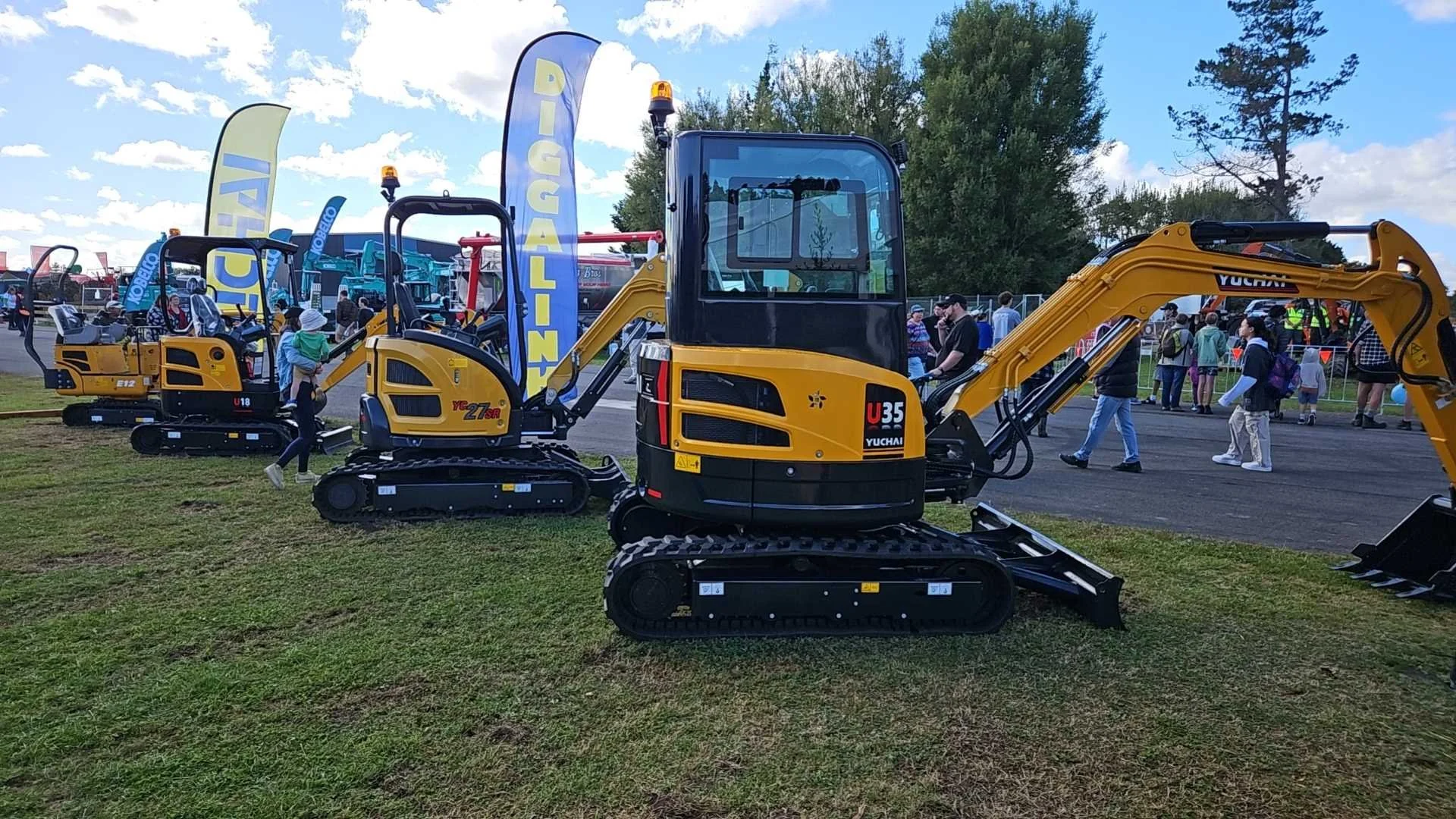

At an outdoor event, multiple yellow and black mini excavators are displayed on a grassy area with a crowd of people walking around and looking at them. There are flags and banners advertising the excavator brands, and trees can be seen in the backgr
