YUCHAI U27

MINI EXCAVator

The Yuchai U27 Mini Excavator easily operates in narrow spaces with it’s zero-tail-swing body, being the perfect machine for tight spaces on site and easy operation.


Ideal for: Landscapers | Builders | Life style block maintenance

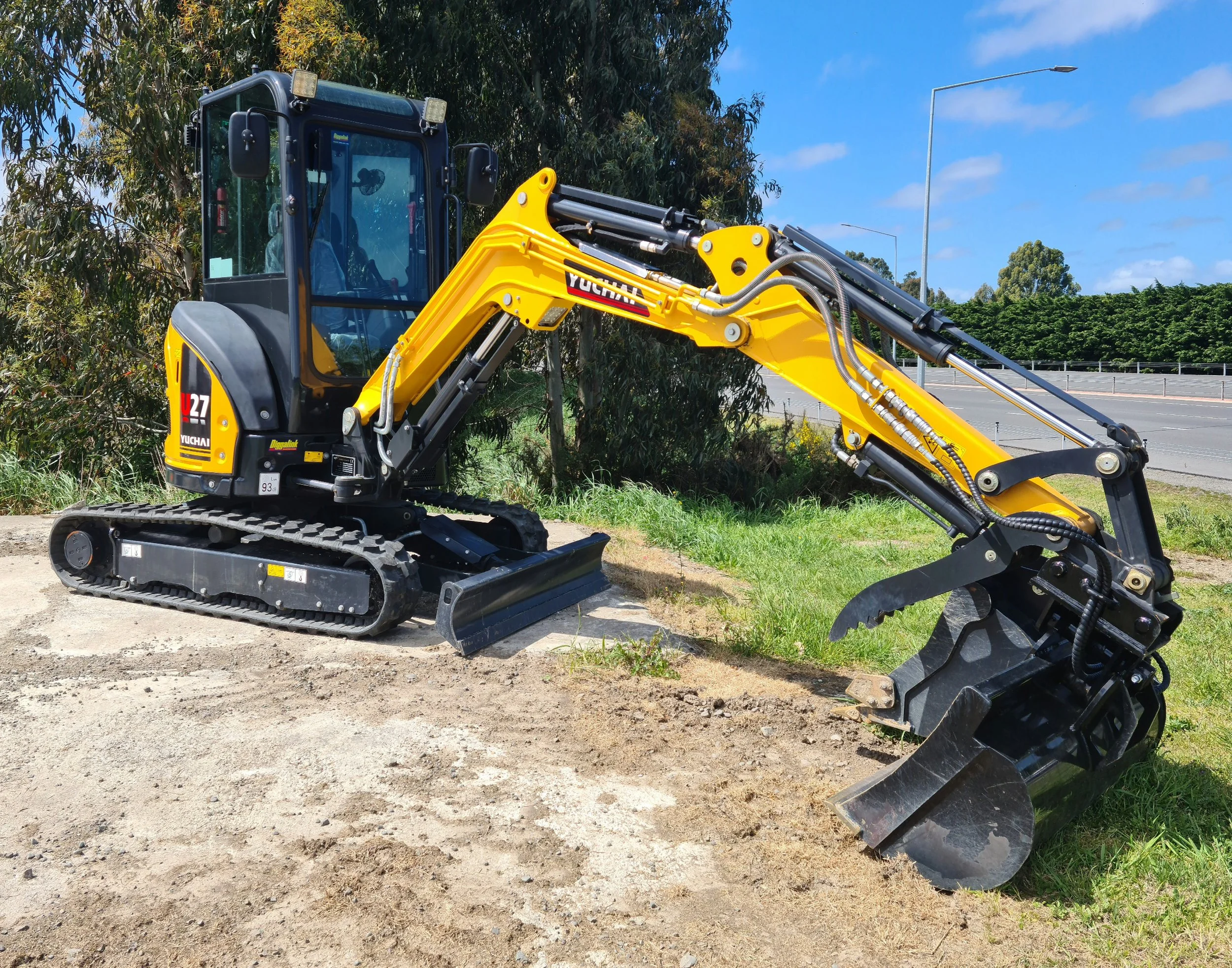

A yellow Yuchai excavator with black tracks parked on dirt next to green trees under a partly cloudy blue sky.
WATCH HERE

KEY FEATURES

Machine Weight: 2600 kg

Bucket Capacity: 0.09 m³

Width of Bucket: 510 mm

Max. Gradeability: 30°

  • Engine Make: Yanmar

    Engine Model: 3TNV80F

    Engine Power: 15.2/2500 kw/rpm

  • Max. digging height: 4170mm
    Max. digging depth: 2540mm
    Max. digging radius: 4520mm
    Min. platform tail turning radius: 750mm
    Max. dumping height: 2780mm
    Max. slewing radius: 1950mm
    Max. dozer blade depth: 355mm
    Max. dozer blade height: 340mm

  • Transportation Dimensions
    Overall length: 4110mm
    Overall width: 1500mm
    Overall height: 2490mm

    Dimensions
    Length of track: 2040mm
    Width of track: 250mm
    Arm length: 1150mm
    Boom length: 2020mm

Product Guide
Contact us

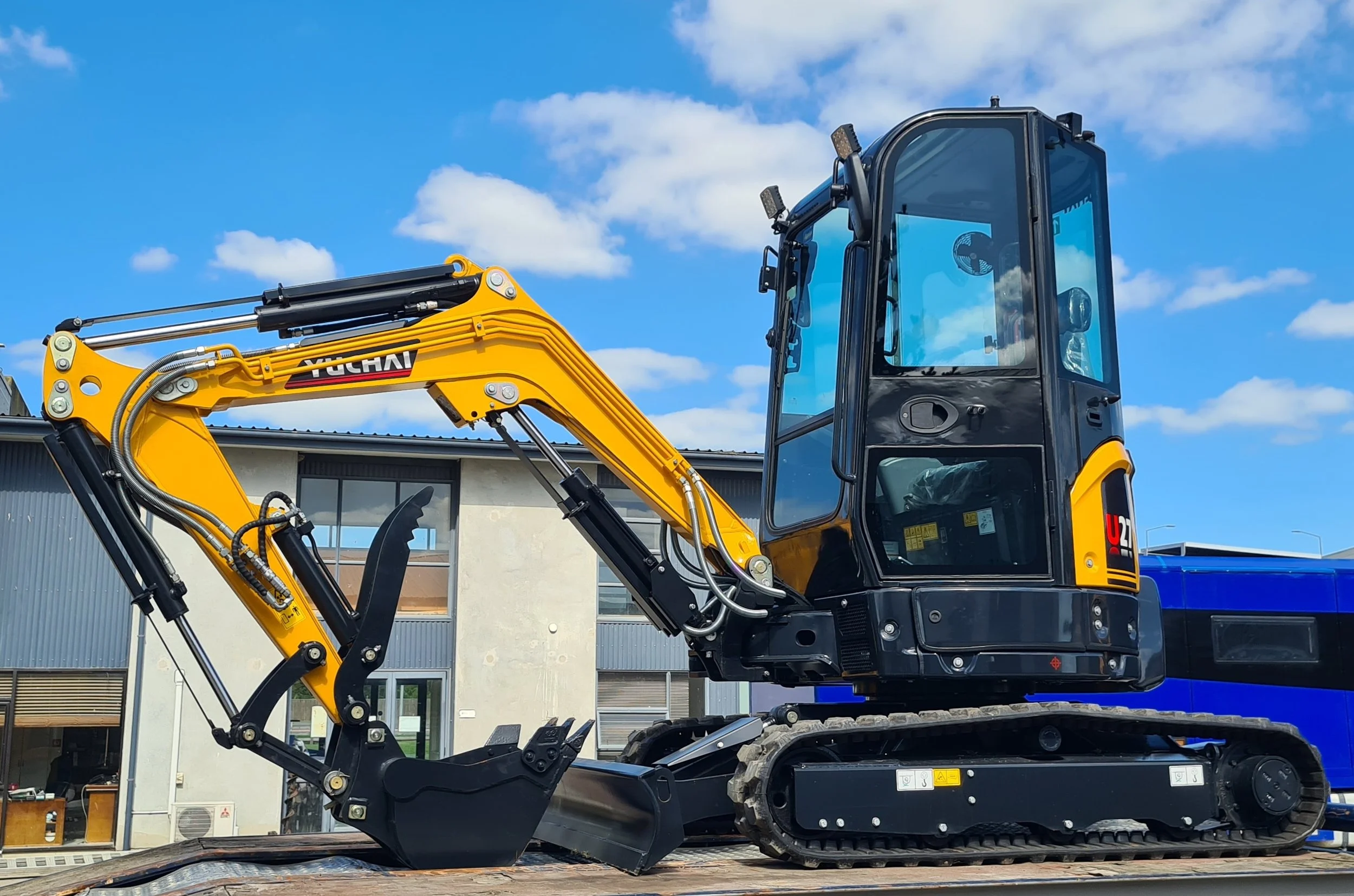

A yellow excavator with a black cab and tracks, parked outdoors under a blue sky with white clouds, in front of a modern building.

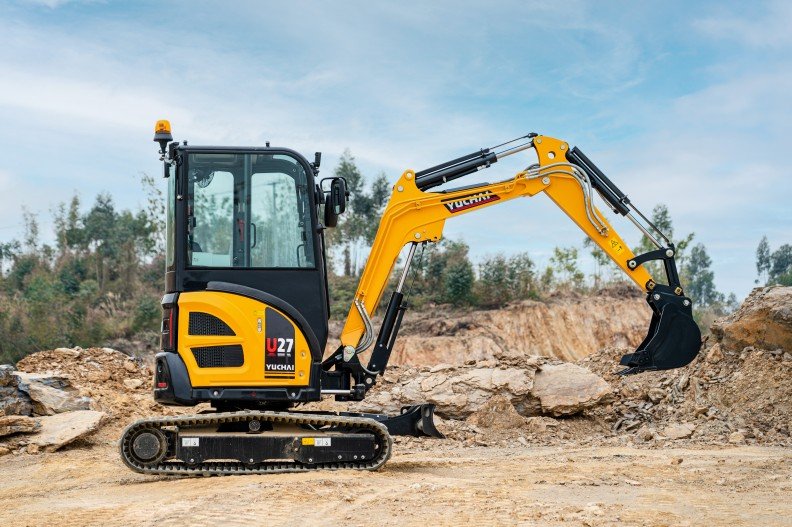

Small yellow and black excavator working on dirt and rocks at a construction site with trees in the background.

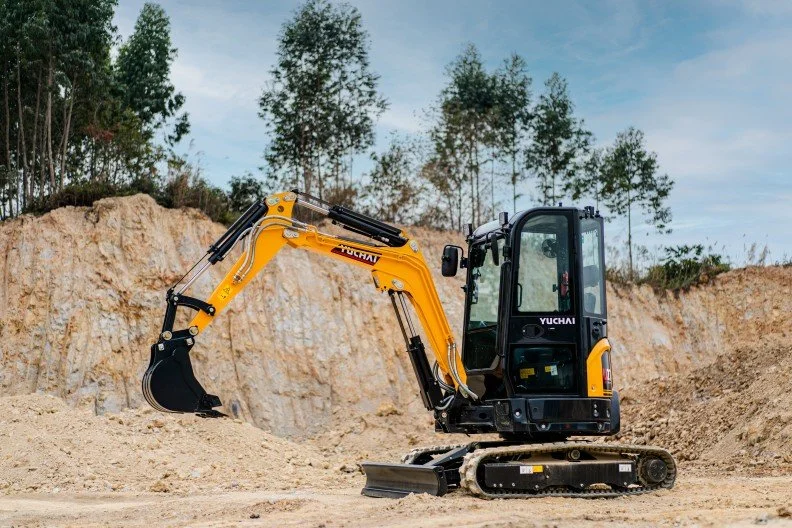

Small yellow and black excavator on a dirt construction site, with a dirt embankment and trees in the background.

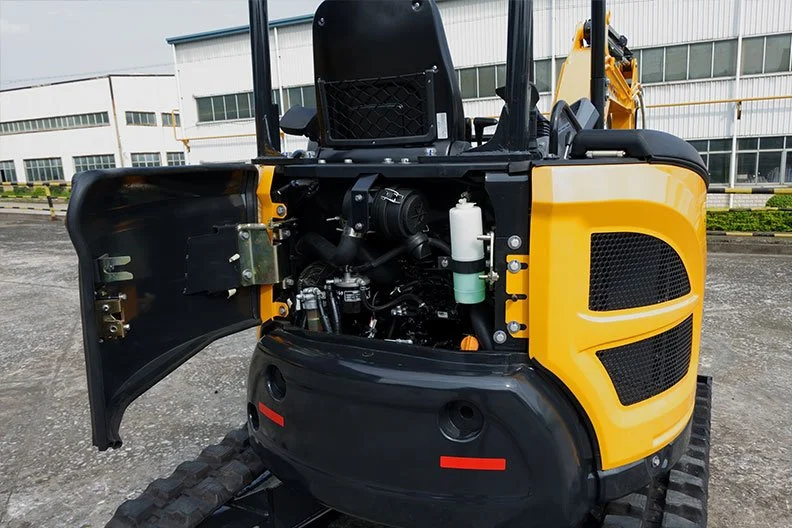

Close-up of the engine compartment of a yellow compact excavator with an open cover, showing internal mechanical parts, engine components, and a white fluid container.

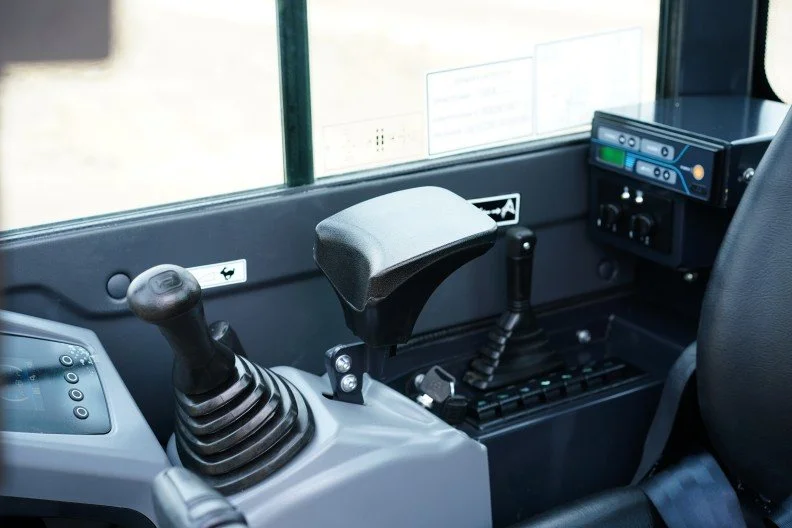

Inside a bus cockpit showing a steering wheel, gear shift, and control panel.

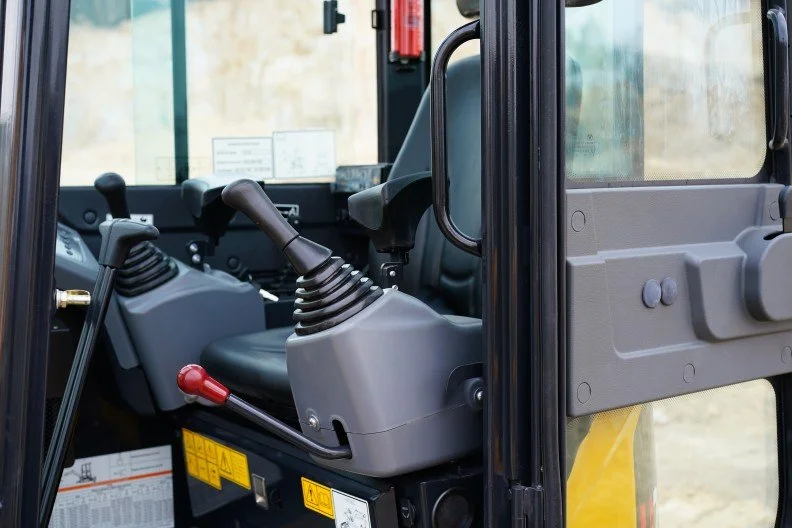

Interior of a construction or industrial vehicle with control levers and a steering wheel.

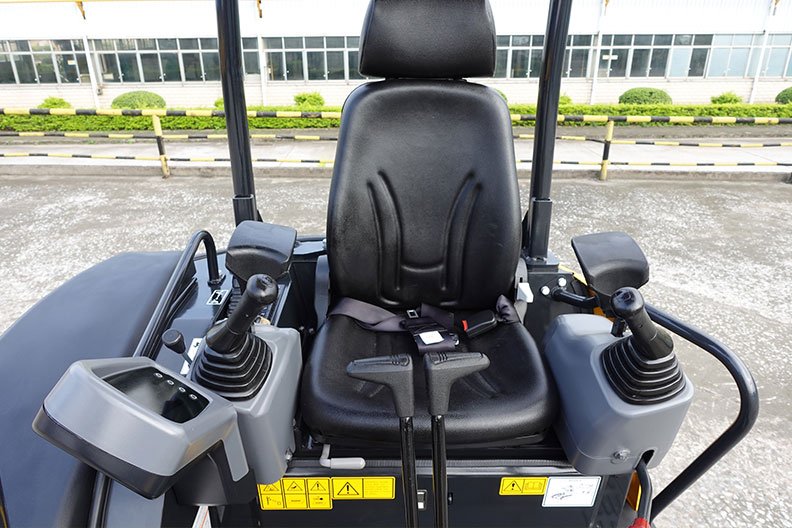

The image shows the operator's seat and control panel of a construction or farm vehicle, likely a skid steer or compact loader, with two joystick controls on either side of the chair, outside a building with large windows and a parking lot.

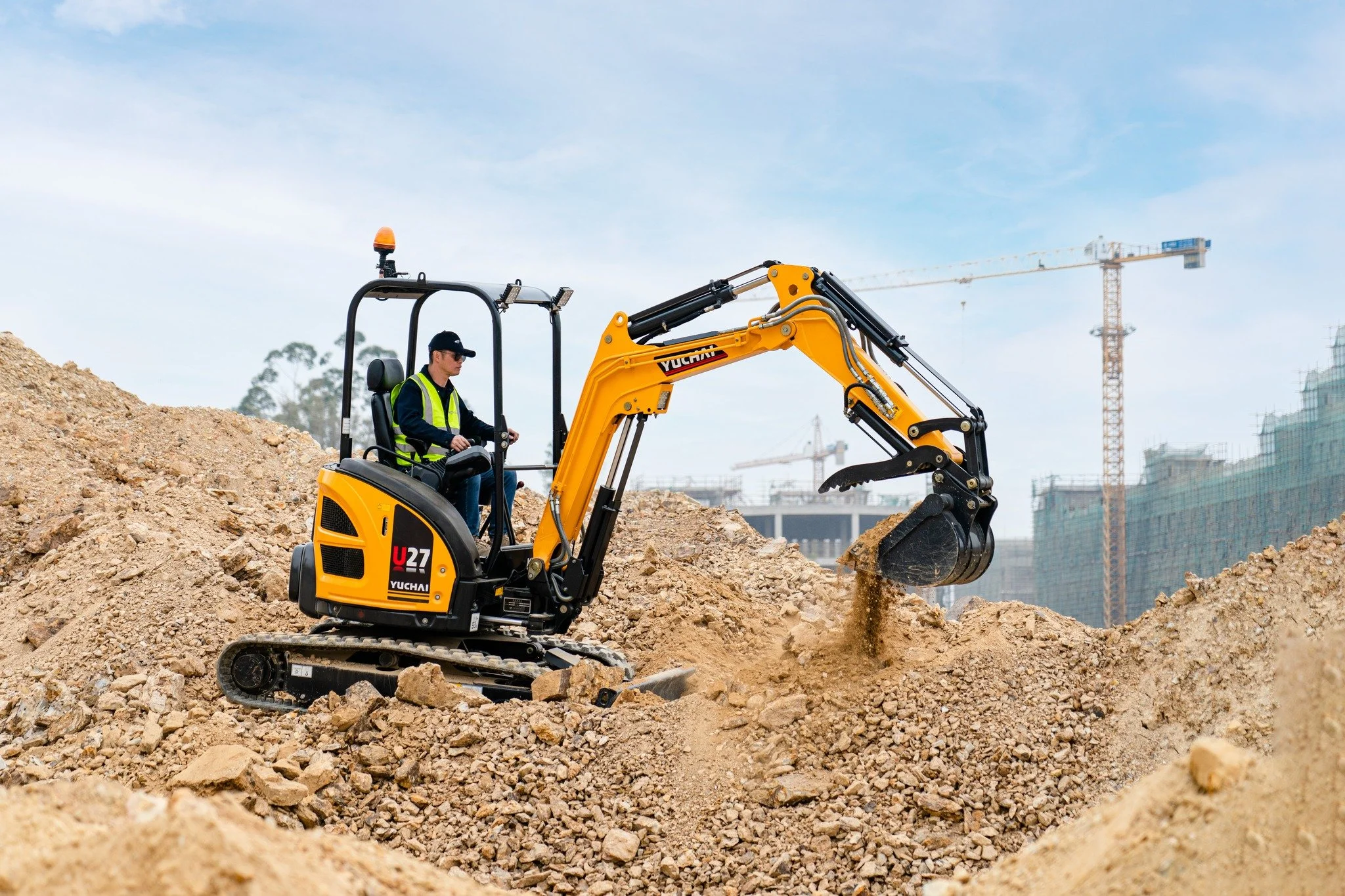

A construction worker operating a yellow mini excavator on a dirt site with construction cranes in the background.

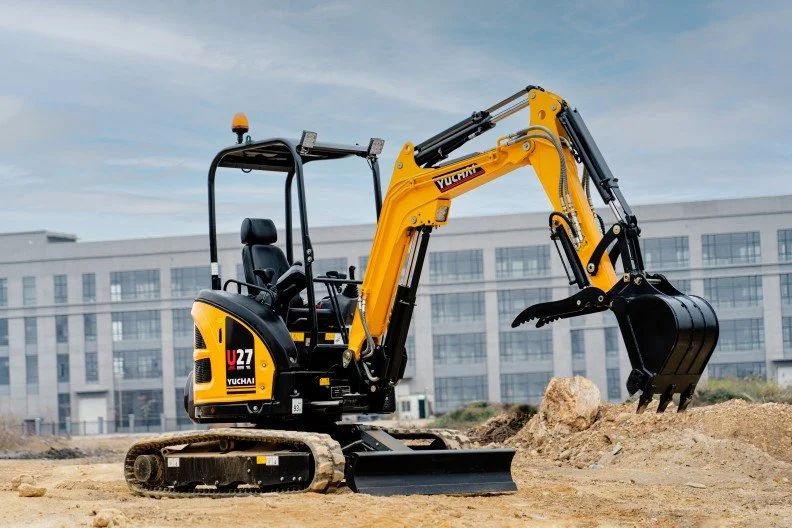

Small yellow and black excavator working on a construction site with a modern building in the background

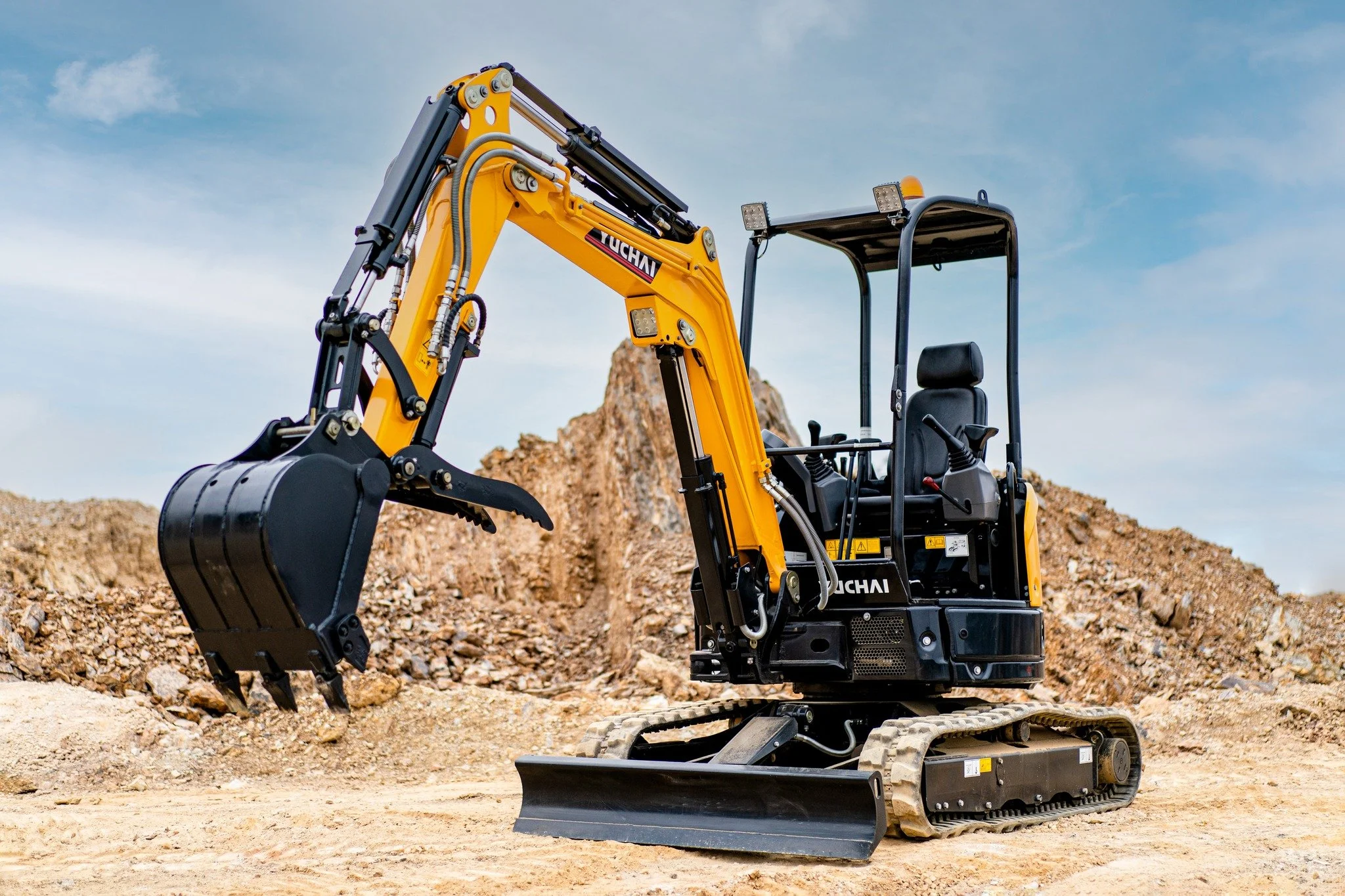

A yellow and black mini excavator at a construction site with dirt and rocks around, under a cloudy sky.

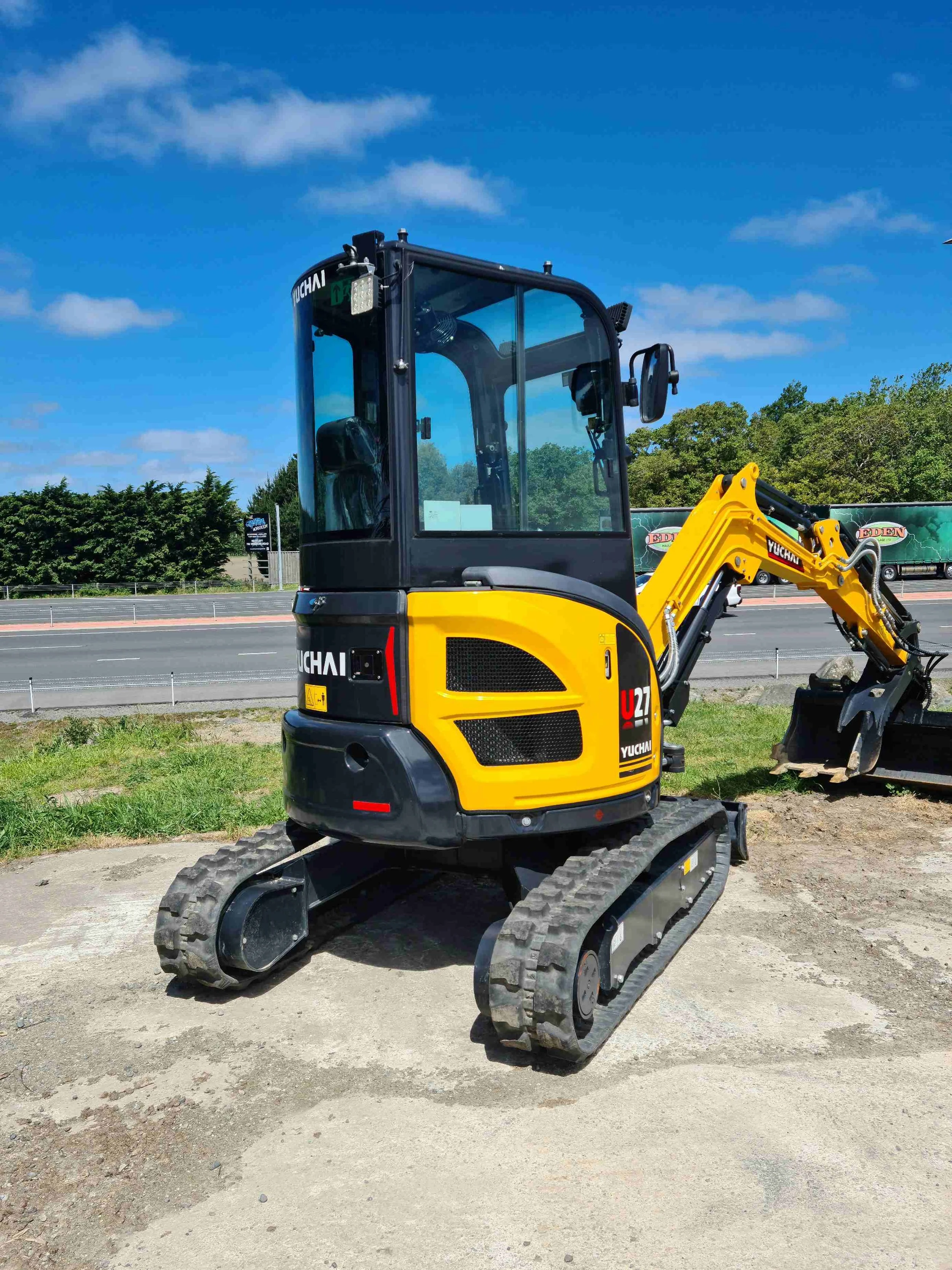

A small yellow and black tracked excavator with the brand name Yuchai on the side, parked outdoors on a patch of ground with grass and dirt, under a blue sky with some clouds.

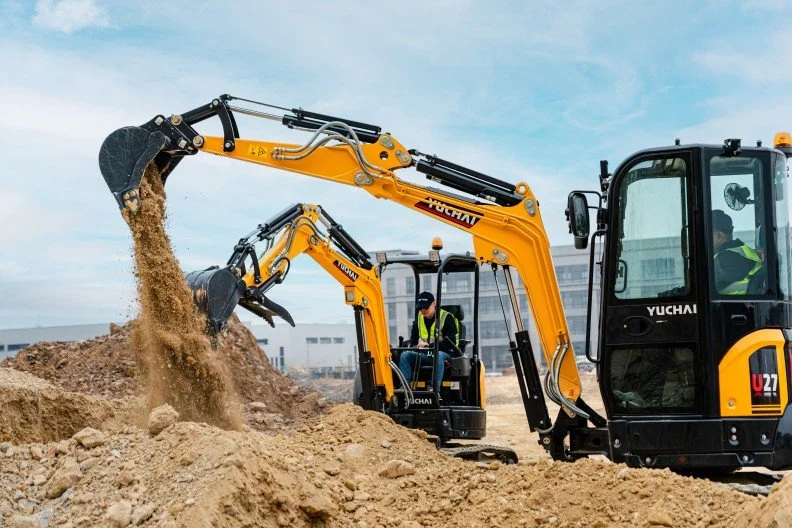

Construction site with two yellow excavators digging into a dirt mound, with workers operating the machinery and wearing safety vests and helmets.

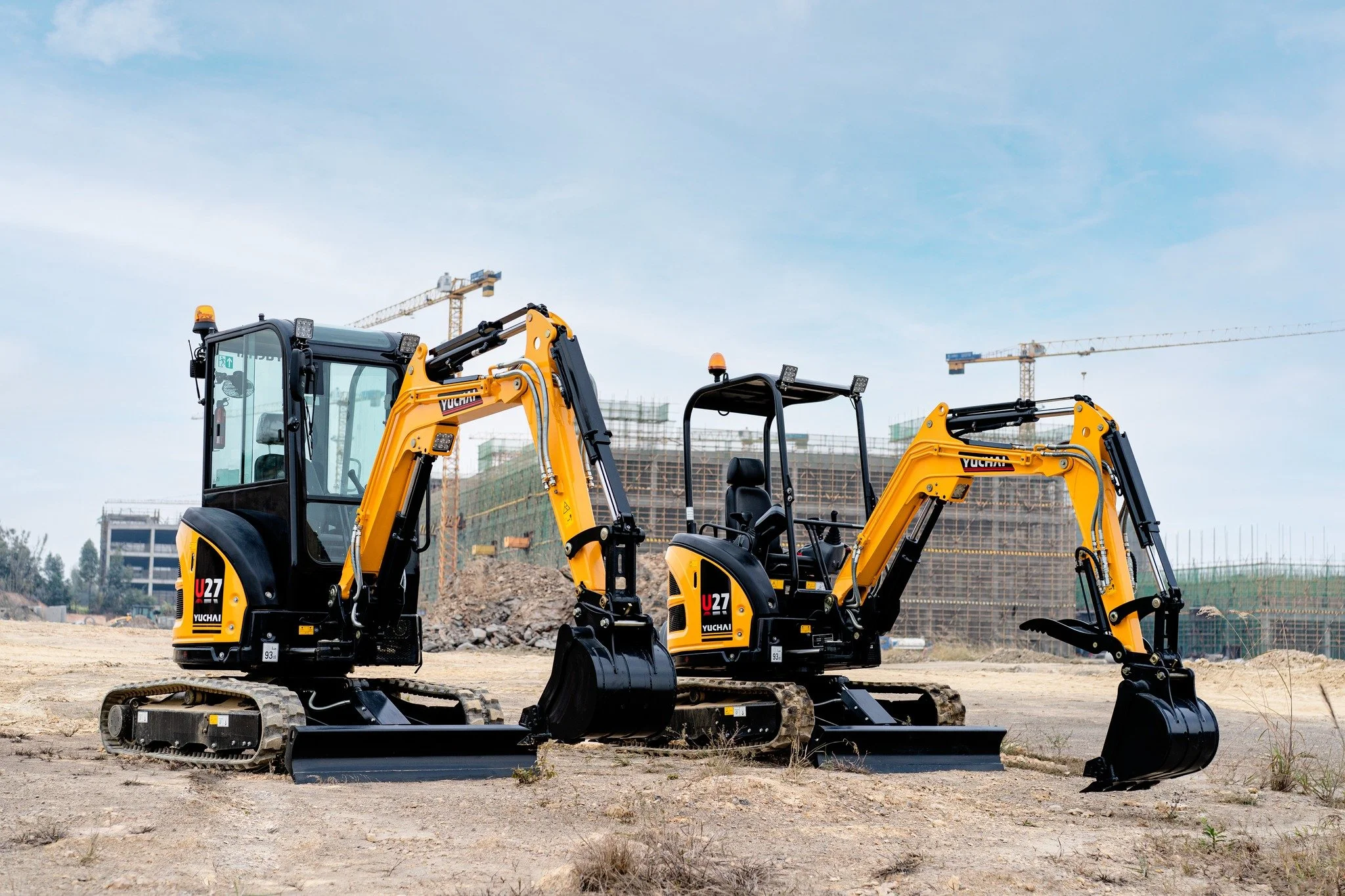

Two small yellow excavators with caterpillar tracks parked on a construction site with dirt and rocks, cranes and building structures visible in the background under a clear sky.
