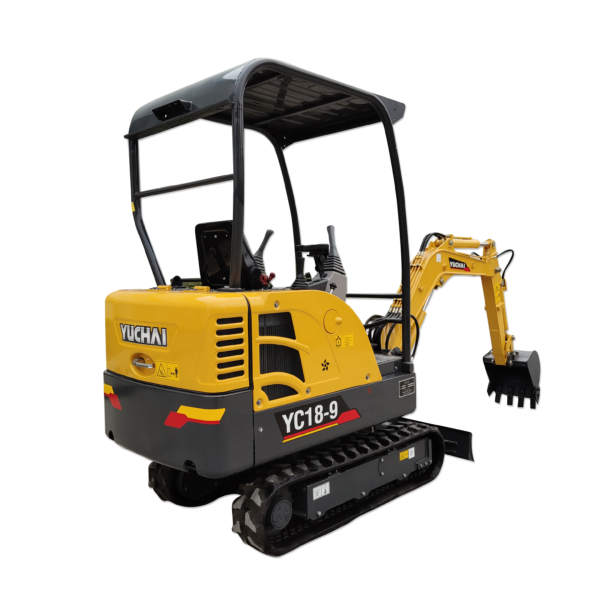

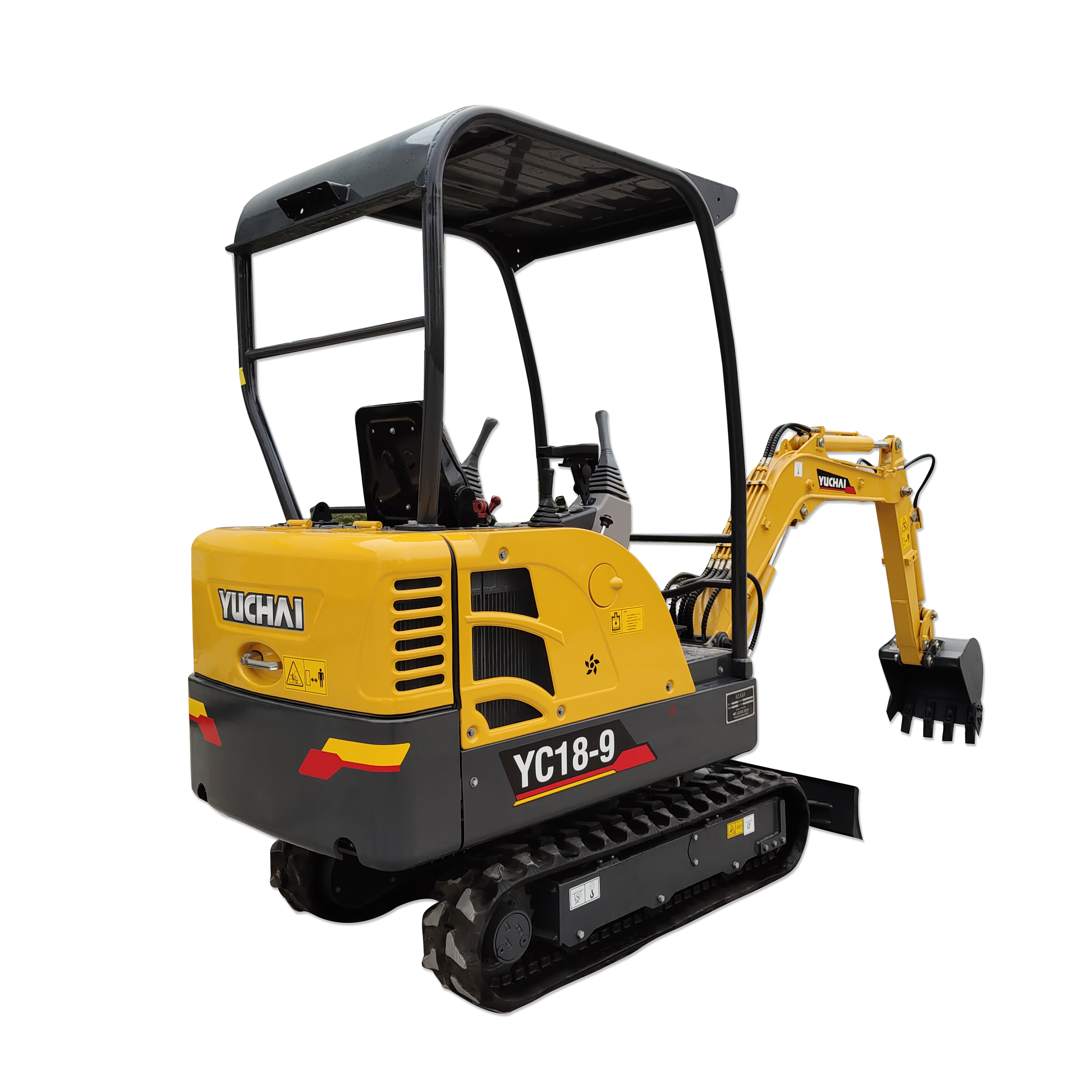

YC18-9

SKU: 79441-1 Category:

  • Yanmar 3TNV76-PYU Diesel
  • 13.3 kW Rated Power
  • Attachments: Digging, Manual Hitch
  • Expanding Tracks
  • Computer Free
  • Aux Hydraulics
  • Canopy or Cabin
  • Options include: Trench, Wide, Tilt Buckets, Root Rake, Ripper, Auger, Rock Breaker, Galvanized 2 Axle Braked Trailer

Max Length 3595 mm
Machine Height 2275 mm
Overall Width 990 mm
Width of Undercarriage 1100-1300 mm
Width of Track 230 mm
Length of Track 1585 mm
Platform Tail Turning Radius 1140 mm
Height Undercarriage to Ground 180 mm
Height Platform to Ground 460 mm



Engine Yanmar 3TNV76-PYU Diesel
Engine Power 13.3kw @ 2200 rpm
Machine Weight 1700 kg Canopy / 1850 kg Cabin
Std Bucket Capacity 0.05 cub m
Std Bucket Width 469 mm
Flow Rate Pump 2×17.6+6.6 (Constant)
Max Digging Force 12.5 kN
Max Gradeability 30 deg
Pressure to Ground 29 Kpa
Walking Speed 2 – 4 km/hr
Max Hauling Force 18.1 kN
Swing Speed 10 – 12 rpm



Max Digging Height 2940 mm
Max Digging Depth 1895 mm
Min Platform Tail Turning Radius 1140 mm
Max Digging Radius 3645 mm
Max Dumping Height 1955 mm
Max Digging Radius Ground Level 3540 mm
