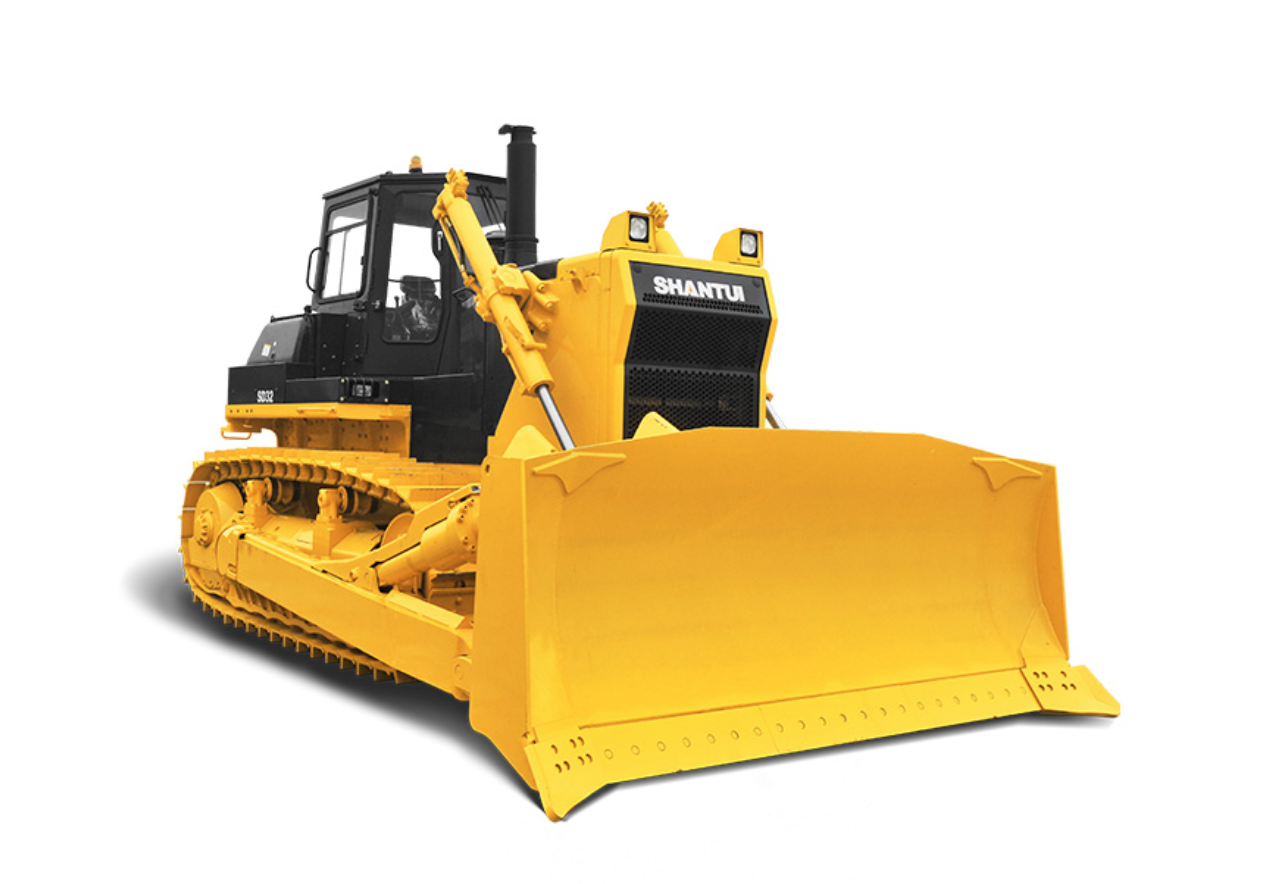

Shantui SD32

SKU: 79441-1-1-1-1-1-3 Category:

  • Rated Power: 235KW @2000 Rpm
  • Engine Model: Cummins NTA855-C360S10
  • Operating Weight: 37.2t

The SD32 provides a showcase for Shantui’s prowess with high-efficiency push factors. These medium-sized, but heavy duty machines designed for earth moving projects get the biggest, toughest jobs done quickly and efficiently. SD32’s are equipped with a hydraulic drive system with hydraulic control technology and an advanced structure, which provides reliable performance and convenient and flexible operation.



Length x Width x Height (mm) 6880 x 4130 x 3725
Operating Weight (Ripper not included) 37.2t
Drop Below Ground of Blade 560mm
Lift Height of Blade 1560mm
Ripping Depth of Ripper Single Ripper: 1250mm / Three-Shank Ripper: 842mm
Lifting Height of Ripper Single Ripper: 955mm / Three Shank Ripper: 883mm
Number of Carriers (each side) 2
Number of Track Rollers (each side) 7
Number of Track Shoes (each side) 41
Engine Cummins NTA855-C360S10
Rated Power 235KW @ 2000 Rpm
Gradeability 30ยบ
Blade Type Straight Tilt Blade/Semi-U Blade/Angle Blade
Ripper Type Single Ripper/Three-Shank Ripper
Dozing Capacity Straight Tilt Blade: 10 CubM

Semi-U Blade: 11.9 CubM

Angle Blade: 6 CubM

Ground Length and Ground Pressure 3150mm/0.105MPa
Forward Speed 1 0-3.6 km/h
Forward Speed 2 0-6.6 km/h
Forward Speed 3 0-11.5 km/h
Reverse Speed 1 0-4.4 km/h
Reverse Speed 2 0-7.8 km/h
Reverse Speed 3 0-13.5 km/h
