Shantui SD22F

SKU: 79441-1-1-1-1-1-2 Category:

  • Rated Power: 162KW @ 1800 RPM
  • Engine Model: Cummins NT855-CR80S10
  • Operating Weight: 23.4t

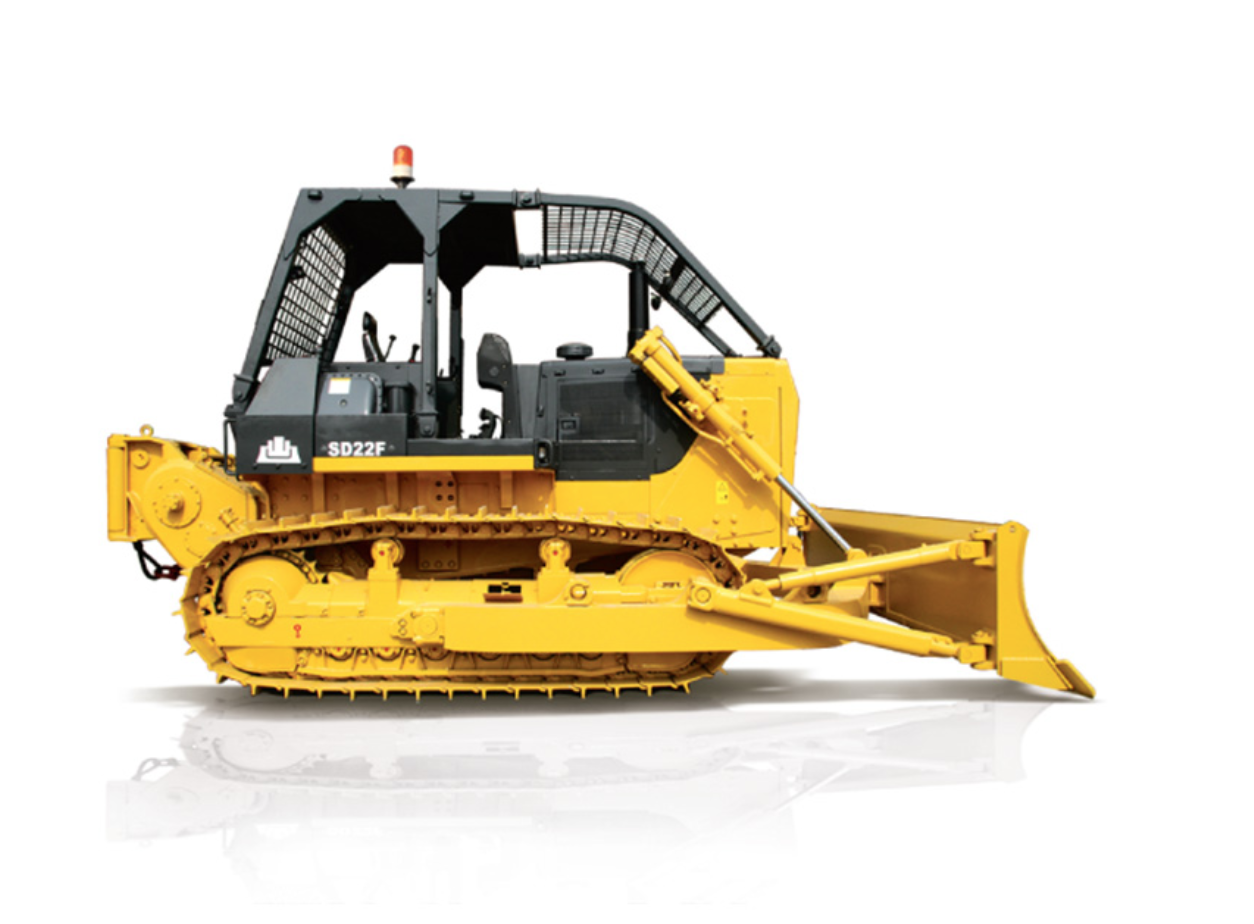

The SD22F forest type bulldozer is specially designed for operations in wooded areas. The SD22F features advanced performance, high reliability, low fuel consumption and convenient maintenance. It’s equipped with a ROPS canopy and cab, a wider track (610mm) and a mechanical winch. The SD22F has excellent manoeuvrability and self-rescue capabilities. The SD22F easily adapts to logging, stacking, hauling and transporting work in forests.



Length x Width x Height (mm) 5750 x 3725 x 3395
Operating Weight 23.4t
Drop Below Ground of Blade 540 mm
Lift Height of Blade 1210 mm
Ripping Depth of Ripper Three Shank Ripper: 666 mm
Lifting Height of Ripper Three Shank Ripper: 555 mm
Number of Carriers (each side) 2
Number of Track Rollers (each side) 6
Number of Track Shoes (each side) 38



Engine Cummins NT855-C280S10
Rated Power 162kw @ 1800 rpm
Gradeability 30ยบ
Blade Type Straight Tilt Blade
Ripper Type Single Ripper/Three-Shank Ripper
Ground Length and Ground Pressure 2730mm / 0.066 MPa
Forward Speed 1 0-3.6 km/h
Forward Speed 2 0-6.5 km/h
Forward Speed 3 0-11.2 km/h
Reverse Speed 1 0-4.3 km/h
Reverse Speed 2 0-7.7 km/h
Reverse Speed 3 0-13.2 km/h
