Shantui SD10YE

SKU: 79441-1-1-1 Category:

  • Rated Power: 74kw @ 2200 rpm
  • Engine Model: Cummins QSB4.5
  • Operating Weight: 9.2 T

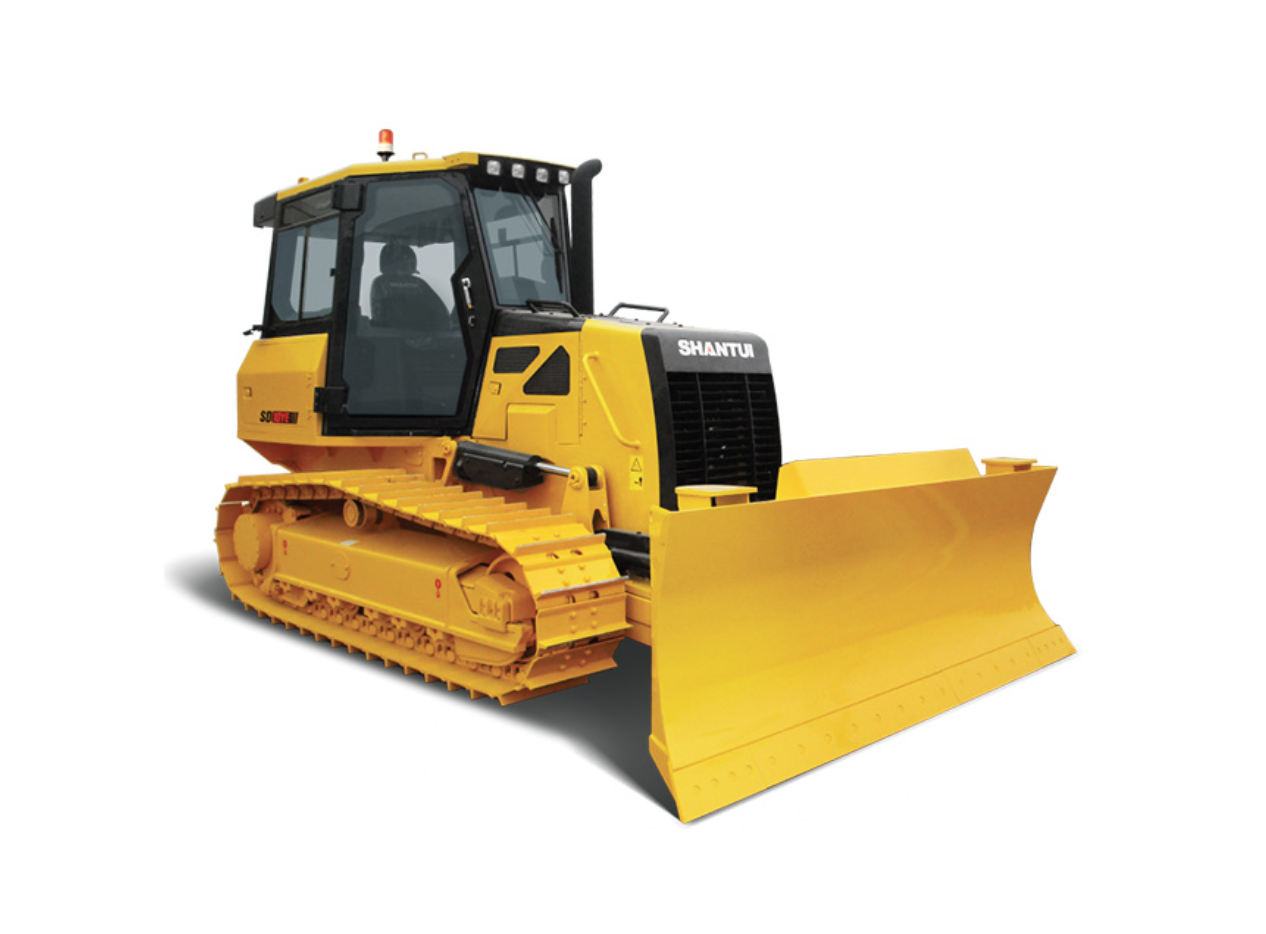

The 100 HP SD10YE bullbozer is powerful and its electronically controlled turbocharged Cummins engine meets tier III Stage III, European and US emission standards. Designed for smaller work projects, but like all Shantui bulldozers, it’s environmentally friendly, highly economical, and above all, reliable. Equipped with a straight-tilt blade, the hydrostatic SD10YE is most often used for excavating, transporting and backfilling in earth moving projects on roads, farms, rivers, urban areas and power plant projects.

Download product specifications
Enquire about this product



Length x Weight x Height (Ripper not included) 4285 x 2740 x 2777
Operating Weight (Ripper not included) 9.2T
Drop below ground of blade 440 mm
Lift height of blade 990 mm
Number of carriers (each side) 1
Number of track rollers (each side) 6
Number of track shoes (each side) 39
Width of track shoe 460 mm
Track gauge 1650 mm
Ground Length 2360 mm
Ground Pressure 0.04 MPa
Engine Cummins QSB4.5
Engine Power 74kw @ 2200 rpm
Gradeability 30°
Blade Type Straight Tilt Blade
Blade Width 2740 x 890 mm
Dozing Capacity 2.38 m
Pressure to Ground 0.4 Mpa
Forward Speed 0 – 9 km/h  Steepless Transmission
Reverse Speed 0 – 9 km/h Steepless Transmission
